Countertop Overhang for Seating: Dimensions, Support

You've chosen the slab, approved the cabinet color, and measured the island. Then the stools arrive, and the first person sits down only to knock their knees against the cabinet. The island looks finished, but nobody wants to use it for breakfast, homework, or a meal that lasts longer than a few minutes.

That problem usually starts with treating countertop overhang for seating as a decorative extension instead of a human-fit decision. The right depth depends on the counter height, the stool, the user's build, and whether the space is for a quick perch or everyday dining. A few minutes with cardboard and the actual stools can prevent an expensive stone-cutting mistake.

Why Most Countertop Overhang Advice Falls Short

“Use 12 inches” sounds decisive, but it leaves out the details that determine whether the seating works. Knee clearance, stool depth, user height, and sitting time all affect the finished fit. A dimension that suits a short coffee break may feel cramped during breakfast, homework, or a full meal.

Households rarely have identical users. A taller adult may need more knee room, another person may use a deeper stool, and a child may treat the island as a desk. The island can have enough length for every seat and still feel awkward because depth and fit matter as much as seat count.

The number is only the starting point

Planning guidance commonly allows 24 inches of seating width per person and a knee space of 24 inches wide by 15 inches deep at a standard 36-inch counter-height surface. At a 42-inch bar-height counter, the commonly cited knee space is 24 inches wide by 12 inches deep. These figures explain why designers often begin with approximately 15 inches of counter-height overhang and 12 inches of bar-height overhang. (Countertop overhang planning guidance)

Those dimensions are starting points, not a substitute for checking the actual stool. A deep seat can place the user farther from the cabinet and require more projection, while a compact stool may work with less. A footrest, back angle, and cabinet position also change posture. Longer meals expose poor planning faster than a quick snack.

Practical rule: Design around the person's seated posture, not the overhang number printed in a generic guide.

Questions to answer before fabrication

Before templating the countertop, confirm how the island will be used:

• Who will sit there? Measure for the tallest regular user, not only the person who occasionally pulls up a stool.
• What stool will you use? Check seat depth, back angle, footrest position, and overall footprint.
• How long will people sit? Quick perch seating can tolerate less room than dining, studying, or working.
• Where are the supports? A deeper projection affects brackets, legs, and the structural plan, not only the stone outline.
• What happens around the island? Account for occupied stools, walkways, appliance doors, and circulation.

A cardboard template or the actual stools can expose conflicts before fabrication. Approving the slab first can leave you correcting the edge, relocating supports, or living with seating that never feels natural. The best overhang is the one that matches the users, their furniture, and the time they spend at the counter.

Recommended Overhang Dimensions by Seat Type and User Height

The difference between a quick coffee perch and full dinner seating often comes down to one measurement: how far the countertop projects. Start with the finished counter height, then choose the stool and projection as a single layout. A standard counter-height surface is commonly planned at 36 inches, while a bar-height surface is commonly planned at 42 inches.

Seating Type	Counter Height	Overhang Depth	Knee Clearance	Width Per Person
Quick perch seating	36 inches	10 to 12 inches	About 15 inches is the comfort baseline	24 inches
Everyday counter seating	36 inches	12 to 15 inches	About 15 inches	24 inches
Taller users or longer meals	36 inches	15 to 18 inches	More generous knee room	24 inches
Bar-style seating	42 inches	12 inches as a starting point	12 inches	24 inches

These figures are planning references for seating width, knee space, and projection. Deeper seating guidance also includes 15 to 18 inches where users need more room for a comfortable posture. (Seating overhang and support measurements)

Match depth to the household

Use 10 to 12 inches when the island is mainly for leaning, coffee, or a quick meal. This keeps the edge compact and protects circulation, but it can feel tight for a taller adult or anyone using a deep stool.

For everyday counter-height dining, 12 to 15 inches is the more dependable range. A 15-inch projection gives the knees a clearer path and makes a natural seated posture easier. Taller users, deeper stools, and longer meals may justify 15 to 18 inches, provided the support plan and surrounding walkways can accommodate the added depth. (User-centered overhang guidance)

Stool dimensions matter as much as user height. A deep seat places the body farther from the cabinet, while a compact stool may fit comfortably with less projection. The back angle, footrest position, and cabinet location also affect posture. A quick snack can hide a poor fit that becomes obvious during dinner, studying, or working.

Test before the stone is ordered

Make a full-size cardboard template of the proposed countertop edge. Tape it to the cabinet at the finished height, place the actual stools beneath it, and ask each regular user to sit naturally.

Check whether:

1. Knees clear the cabinet face without turning sideways.
2. Feet reach the stool's footrest comfortably.
3. The stool moves in and out without striking an adjacent cabinet.
4. The user can bring a plate or laptop toward the body without hunching.
5. Two people can sit side by side without crowding.

Use the actual counter stools, not dining chairs. Seat depth and posture can change the perceived fit even when the countertop measurement stays the same. Mark the preferred edge on the floor, then walk through the kitchen while the stools are occupied. A comfortable overhang that blocks a work zone or tightens circulation still fails the layout.

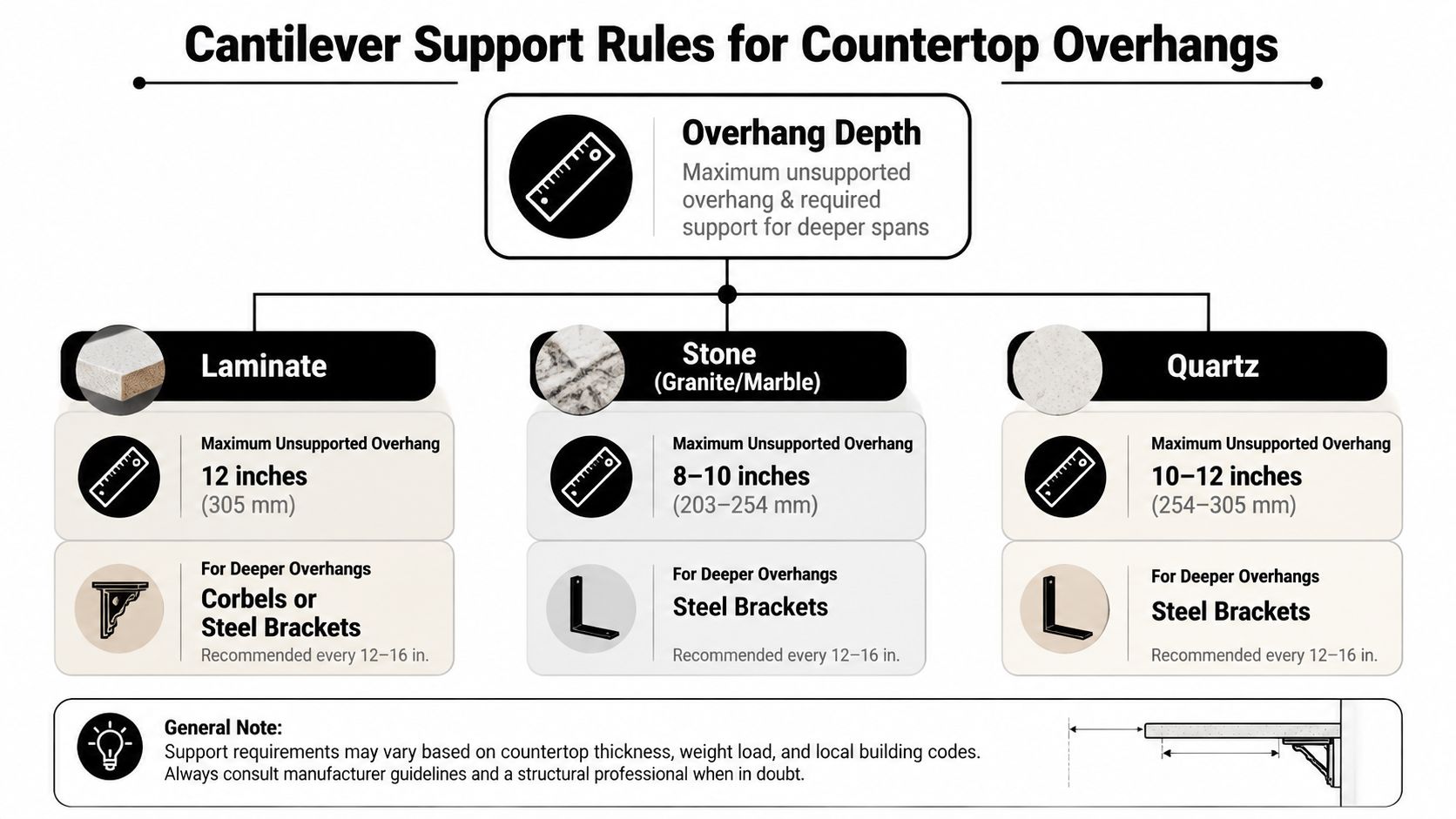

Structural Support Rules by Material and Overhang Depth

A seating overhang is a cantilever system. The countertop projects beyond its support, so the fabricator must control flex, load, and the route that transfers force into the cabinets, wall, or framing.

A standard countertop edge typically extends only 1 to 1.5 inches past the cabinet face. Seating requires much more projection, commonly 12 to 15 inches. Once a stone overhang moves beyond roughly 12 inches, bring steel brackets, corbels, or a structural knee wall into the design. The right support also depends on stool depth, user posture, and whether people will sit briefly or remain at the counter for a full meal.

Thickness and material change the risk

A 3 cm stone slab is often treated as the upper limit for unsupported projection, but the practical limit changes with material, fabrication, edge treatment, substrate, and loading. Support is commonly recommended once projection exceeds approximately 10 to 12 inches. That guidance should not be read as permission to rely on the slab against repeated leaning or concentrated weight.

Thinner slabs need support sooner. 2 cm slabs are often limited to about 6 inches unsupported, while thinner or more brittle stone may need substrate reinforcement almost immediately. A slim contemporary edge should not determine the overhang after the cabinet plan is finished. If the design calls for a thinner top, specify reinforcement before fabrication. Material differences also matter when comparing granite and quartz surfaces, particularly when the edge, substrate, and support layout are not identical.

Use a support plan, not a visual guess

Place supports at 24-inch intervals or less along the seating run. Give corners and exposed ends extra attention, because those areas can experience concentrated torsion and flex. Hidden steel brackets keep the underside visually clean. A corbel or structural knee wall can instead become part of the design.

Select the support method with the fabricator and installer. Confirm that every bracket fastens into a cabinet rail, wall, steel frame, or another structural member. A heavy bracket screwed only into a decorative panel does not create a dependable load path.

Stone doesn't need to visibly sag before the design has failed. Flex can loosen adhesive bonds and create stress that eventually cracks the slab.

Choose the seating depth first, then confirm slab thickness, reinforcement, and spacing. Trimming the overhang after installation is a poor substitute for designing the support correctly. Before approving fabrication, ask for the unsupported projection, material-specific limit, support type, and attachment points.

Layout Configurations for Islands, Peninsulas, and L-Shaped Counters

The same overhang can behave very differently depending on where it sits in the room. An island offers access on all sides, while a peninsula anchors one end and can define the boundary between kitchen and living space. An L-shaped counter can turn an underused corner into seating without introducing another freestanding obstacle.

Island seating

An island gives the most flexibility for stool placement and sight lines. People can face the kitchen while talking with the cook, and the seating edge can be limited to one side so prep space remains uninterrupted. The trade-off is circulation. Occupied stools project into the room, and the designer must account for them when evaluating appliance doors, walkways, and the relationship to the dining area.

The island also needs a deliberate stopping point. Ending the overhang near a sink, cooktop, or corner can create an awkward seat even when the overall length looks generous. Keep supports, cabinet partitions, and service components out of the knee zone wherever possible.

Peninsulas

A peninsula often works well in a compact kitchen because the cabinetry supports one end of the surface. That fixed connection can help define the room, but it also limits where people can sit and may create a tighter approach from one side.

For homeowners comparing options, The Cabinet Coach island ideas can help frame the broader relationship between island form, storage, work zones, and seating. The overhang still needs to be tested in the actual room, especially where a peninsula meets a wall or tall cabinet.

L-shaped counters

An L-shaped configuration can create a natural breakfast nook at the end of a run. It preserves the main work surface while giving one or two users a distinct place to sit, but the corner can restrict leg movement if the cabinet return enters the knee zone.

Accessibility requires more than adding a deeper edge. Aging-in-place or wheelchair users may need a clear knee space with an appropriate height and an unobstructed approach, so the cabinet, support, plumbing, and electrical layout must be coordinated early. A designer should review local requirements and the specific user's mobility needs rather than treating a general seating dimension as an accessibility approval.

The best layout is the one that leaves the seated person comfortable without forcing everyone else to walk around the furniture.

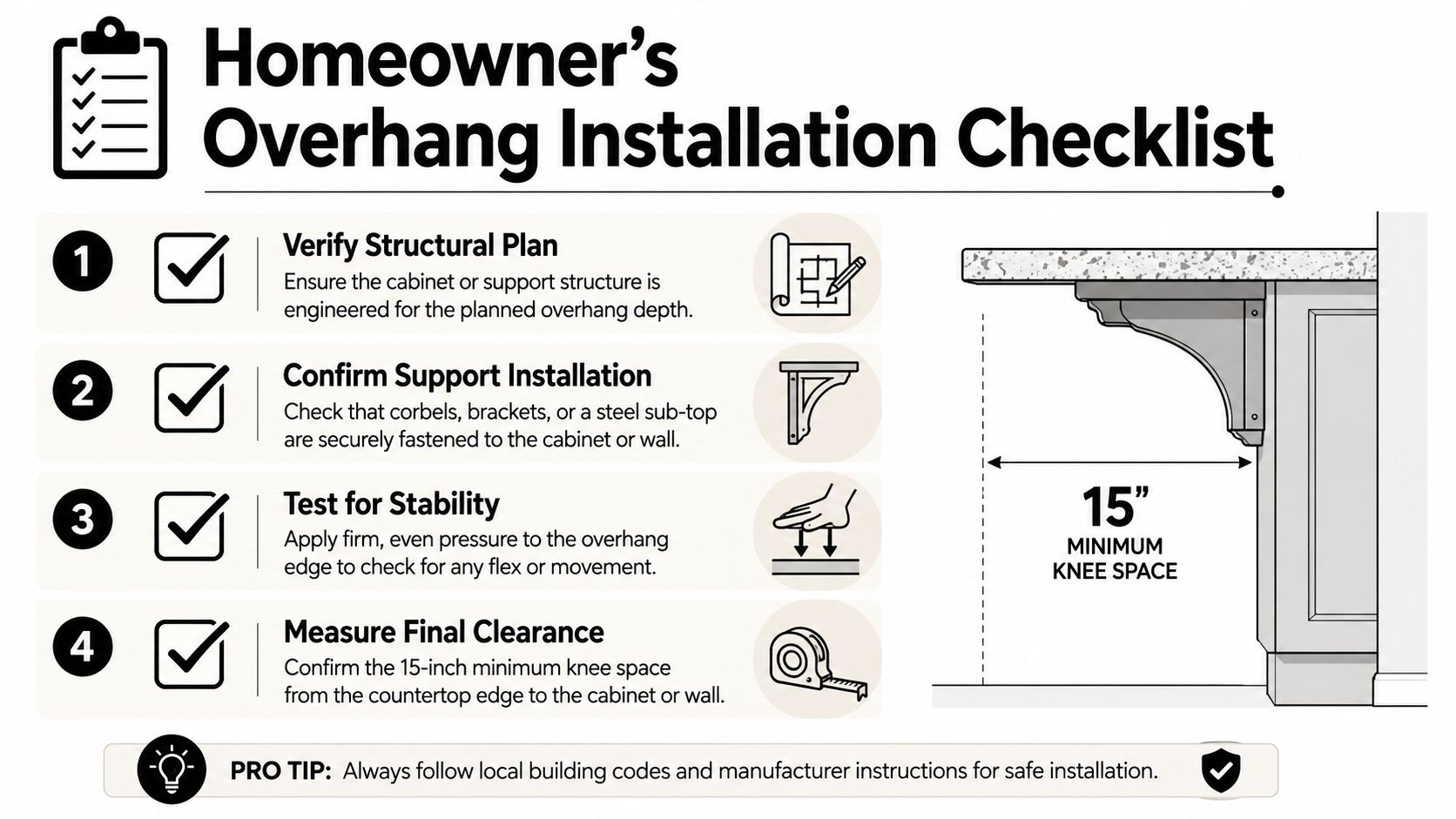

Installation and Inspection Checklist for Homeowners

A comfortable overhang is confirmed in the room, with the actual stools and the people who will use them. Check the finished height, stool depth, knee clearance, support structure, and slab position before installation. Starting with the stone and solving seating afterward usually forces compromises.

Before the countertop arrives

Use a dry fit to test the planned dimensions in the actual room:

• Confirm finished height: Measure from the finished floor to the top of the planned surface, including flooring, cabinet, and slab thickness.
• Set the stool position: Place the actual stools at the counter. Mark their depth, the user's sitting position, and the front edges of the cabinet, support, and countertop.
• Measure knee clearance: Check the space from the cabinet or wall to the counter edge. For a comfortable counter-height arrangement, 15 inches is a commonly cited baseline. (Installation planning sequence)
• Test the intended users: A taller person, a deeper stool, or a meal that lasts longer may require more room than a short perch. Check whether knees contact the cabinet and whether feet can rest naturally.
• Review the support plan: Confirm whether the design uses hidden steel, corbels, a knee wall, or another engineered structure.
• Check attachment points: Supports must fasten to structural cabinet members or framing, not only decorative panels.

Where the selected system calls for it, keep supports at 24-inch intervals or less. Inspect corners and ends separately because they may flex differently from the middle of a straight run. (Support spacing and cantilever guidance)

During and after installation

Before the adhesive cures, inspect every contact point and confirm that the slab sits fully on the intended cabinet or support structure. Apply firm, even hand pressure to the overhang edge. Movement, rocking, or visible flex requires an immediate discussion with the installer.

Keep the new edge clear during the work. Do not use it as a temporary workbench, seat, or ladder. The installer should confirm that the support system is secure and that the adhesive has cured according to the product and fabrication requirements.

After installation, check:

• Movement at the edge: A changing gap or rocking sensation can indicate inadequate support or an unstable base.
• Stone stress: Document new cracks, chips, or unusual sounds promptly.
• Adhesive separation: A visible gap between the slab and support can signal bond failure.
• Stool interference: Confirm that users can sit without hitting brackets, doors, or end panels.
• Plumbing conflicts: If a sink, dishwasher, or water line is near the seating structure, coordinate with a qualified professional familiar with bathroom and kitchen plumbing.

Record measurements and photographs during the walkthrough. Use this final walkthrough checklist to document outstanding items before closing the project.

Choosing Your Overhang Depth, Material, and Support System

The cleanest decision process has three stages. Choose the seating depth first, select the material and thickness second, then design the support system around the resulting cantilever. Reversing that order often produces a beautiful slab that doesn't fit the people or furniture.

For quick perch seating, a shallower projection may be appropriate. For counter-height meals, start in the standard range and test whether the tallest regular user needs more room. If the island will serve as a desk, dining table, and gathering point, prioritize the posture required for the longest activity rather than the shortest one.

Match the surface to the structure

A deeper overhang can improve comfort, but it increases the demand on the support system and may affect circulation. A thinner slab can create a sleek appearance while requiring earlier reinforcement. A structural knee wall or waterfall side can support a generous projection without the look of exposed corbels, but it may reduce leg access or change the visual weight of the island.

Ask the fabricator to put the plan in writing:

• Finished counter height and slab thickness.
• Selected overhang depth.
• Unsupported projection.
• Bracket, corbel, steel, or knee-wall type.
• Maximum support spacing.
• Reinforcement at corners and ends.
• Clearance for the selected stools and intended users.

Material selection also affects the overall remodel budget and design balance. Before approving the slab, compare the options in this guide to the cost of countertop materials, then include reinforcement and installation in the same decision rather than treating support as an afterthought.

A good 3D view should show the overhang at eye level and from the seated position. That makes it easier to spot a cramped knee zone, an intrusive support, or an edge that overwhelms the room before fabrication begins.

---
