Heated Bathroom Floor Installation: Your 2026 Guide

On a Fort Collins winter morning, cold tile can make a bathroom feel unfinished even when the rest of the remodel looks great. That's why heated bathroom floor installation keeps coming up in planning meetings, not as a luxury gimmick, but as a comfort decision that changes how the whole room gets laid out. The part most homeowners don't expect is that the biggest choice isn't the thermostat or the brand, it's how much of the floor should be heated.

That coverage decision ripples into cost, tile cuts, fixture clearances, electrical planning, and even how the room feels when you step out of the shower. Bathrooms account for approximately 70% of all electric underfloor heating installations according to WarmlyYours, so this room deserves more layout discipline than it typically gets at first pass. If the heated zone is drawn well, the system feels natural. If it's drawn poorly, you pay for warmth where nobody stands and miss the spots that matter most.

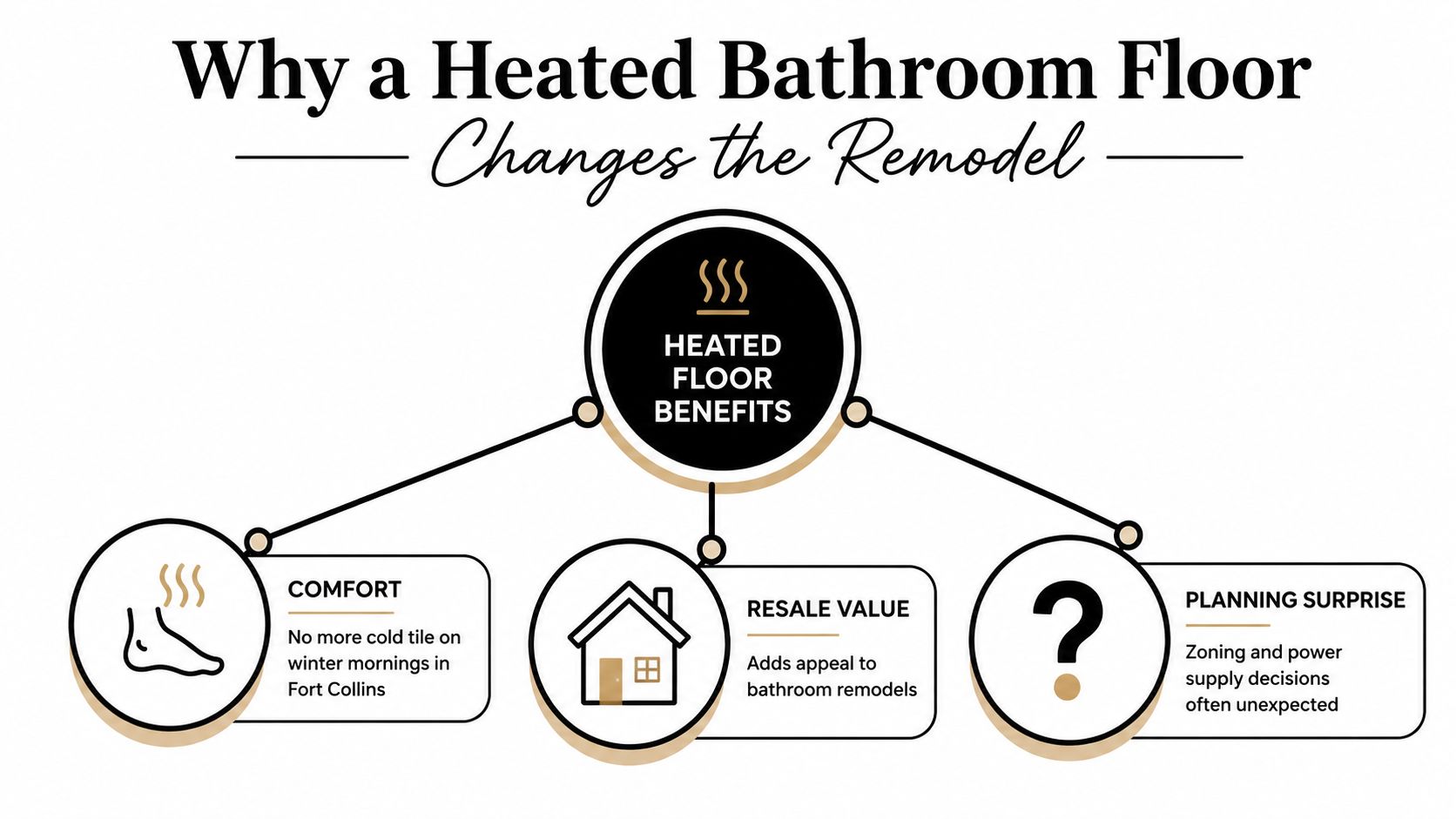

Why a Heated Bathroom Floor Changes the Remodel

The first cold step onto tile is usually what sends homeowners looking for radiant heat, but the planning question shows up before any mat comes out of the box. You're not buying warmth for a room, you're deciding which part of the room deserves heat and which part doesn't. That distinction matters because the heated area has to work around fixed fixtures, traffic patterns, and the tile layout you'll live with for years.

Practical rule: heat the floor where your feet actually land after showering, not the entire room by default.

In most bathrooms, the comfort payoff lives in the open walking path, not under the vanity cabinet or behind the toilet. That's why installers often don't chase full-room coverage, they aim for the usable footprint and leave no-heat zones where warmth would be wasted. The project feels better, and the tile work usually comes out cleaner because the layout is built around real use instead of a blanket assumption.

The cost side follows the same logic. A compact room with straightforward coverage can stay relatively contained, while a bigger primary bath expands quickly once the heated zone grows, the floor covering changes, or the project includes new tile. The smartest quotes I've seen are the ones that separate heated square footage from total bathroom size, because that's where comfort and pricing live.

A heated floor also changes the room visually. When the coverage is mapped well, the tile cuts flow around the zone naturally, the thermostat location makes sense, and the room avoids awkward coverage under built-ins. That's the planning lens homeowners should use from the start, because the system can't be treated as a bolt-on after the tile pattern is already decided.

Electric Versus Hydronic Systems

Electric and hydronic systems both create radiant comfort, but they solve different problems. In a typical bathroom remodel, electric mats or cables usually win because they're thin, simpler to place, and don't ask the room to make space for a boiler-fed plumbing network. Hydronic tubing makes more sense when the heating strategy is bigger than a single bath, especially if the home already supports it.

Factor	Electric Mat or Cable	Hydronic Tubing
Upfront fit for a bathroom remodel	Usually better for small to medium baths	Usually harder to justify in one room
Floor buildup	Thinner profile	More layered assembly
Installation complexity	Straightforward for a bathroom zone	More trade coordination
Retrofit suitability	Often a better fit	Usually more disruptive
Control	Easy to zone by room	Better when tied into a broader heating plan

Radiant floor systems can be 20% to 25% more energy-efficient than forced-air heating, which is one reason electric radiant bathroom floors have become a mainstream remodel upgrade rather than a niche luxury. That efficiency doesn't make hydronic wrong, it just means the bathroom isn't where hydronic usually earns its keep. If you're heating a whole house or a large connected area, the equation changes. If you're warming one bath you use every morning, electric is typically the cleaner fit.

A lot of homeowners compare electric radiant heat the same way they compare a baseboard issue to a whole-house heating problem, which is the wrong frame. If you're sorting through a specific wall-heater failure or planning a broader heat conversation, the detailed breakdown in DIY electric baseboard heater repair is useful context because it shows how room-by-room heating decisions are made.

For larger remodels, the tubing conversation may still be worth having. SouthRay's internal planning on 1-inch PEX matters when a project starts to overlap with broader hydronic design, but that's a different use case than the compact bathroom floor most homeowners are trying to solve.

Electric is the better bathroom answer when you want fast comfort, modest floor buildup, and a zone that doesn't drag the whole house into the project.

Electric vs Hydronic for a Typical Bathroom Remodel

Factor	Electric Mat or Cable	Hydronic Tubing
Best use case	Small to medium bathroom remodels	Larger heating plans or whole-house systems
Remodel disruption	Lower	Higher
Cost structure	Simpler to price by room	Depends on boiler and plumbing scope
Response in a bathroom	Good for scheduled morning use	Better when part of a larger system
Install coordination	Electrician plus tile crew	Multiple trades and more planning

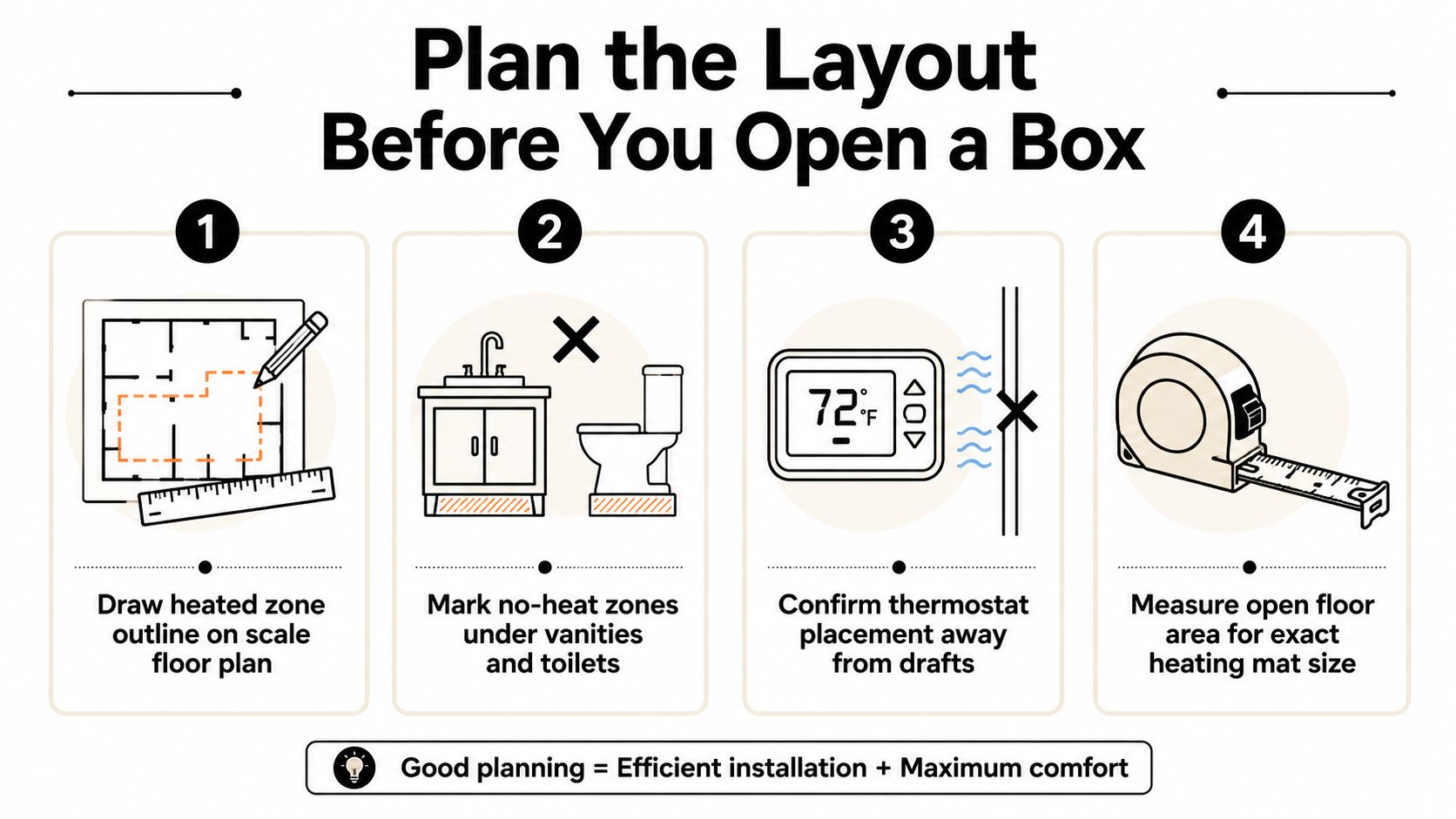

Planning the Layout Before You Open a Box

The best heated floor jobs start on paper, not on the subfloor. I want the heated zone drawn on a scale floor plan before anyone orders the mat, because once the layout is fixed, the rest of the room starts answering to it. That includes vanity clearance, toilet spacing, thermostat placement, and where the tile pattern needs to land so the warm zone feels intentional.

The other pre-box decision is electrical capacity. If the panel can't support the circuit, the project stalls in a way that feels avoidable and expensive. The thermostat also needs a smart location, usually on an interior wall where drafts and direct heat don't distort its reading. Those are small decisions on paper, but they drive the install sequence once the room is open.

Layout rule: keep the heating zone away from permanent fixtures and draw the comfort area around walking paths, not cabinetry.

Installers are advised to keep heating elements at least 3 inches from walls and 6 inches from the toilet for edge protection and fixture clearance, which directly shapes how the heated zone is drawn on the floor plan. That boundary isn't cosmetic. It protects the system, gives the tile edge room to behave, and helps avoid awkward dead strips where the room looks heated but doesn't feel that way.

The subfloor still needs to be flat before any membrane or mat goes down. Unevenness telegraphs through tile, and it can make heat transfer less uniform across the room. If the bathroom has a slight slope toward a drain, that needs to be understood before tile is set, not discovered later when the finished floor shows every mistake.

Pre-Install Checklist

• Draw the heated zone: mark the open walking area on a scale plan before materials are ordered.
• Mark no-heat zones: exclude vanities, toilets, tubs, and other fixed items.
• Confirm thermostat placement: choose a wall location that won't be fooled by drafts or direct sun.
• Measure the open floor area: size the mat or cable to the actual usable zone, not the full room.
• Check the subfloor: level and clean it before any heating element is installed.
• Verify electrical capacity: confirm the circuit plan before scheduling the crew.

A short video walkthrough can help homeowners visualize the layout choices before the work starts.

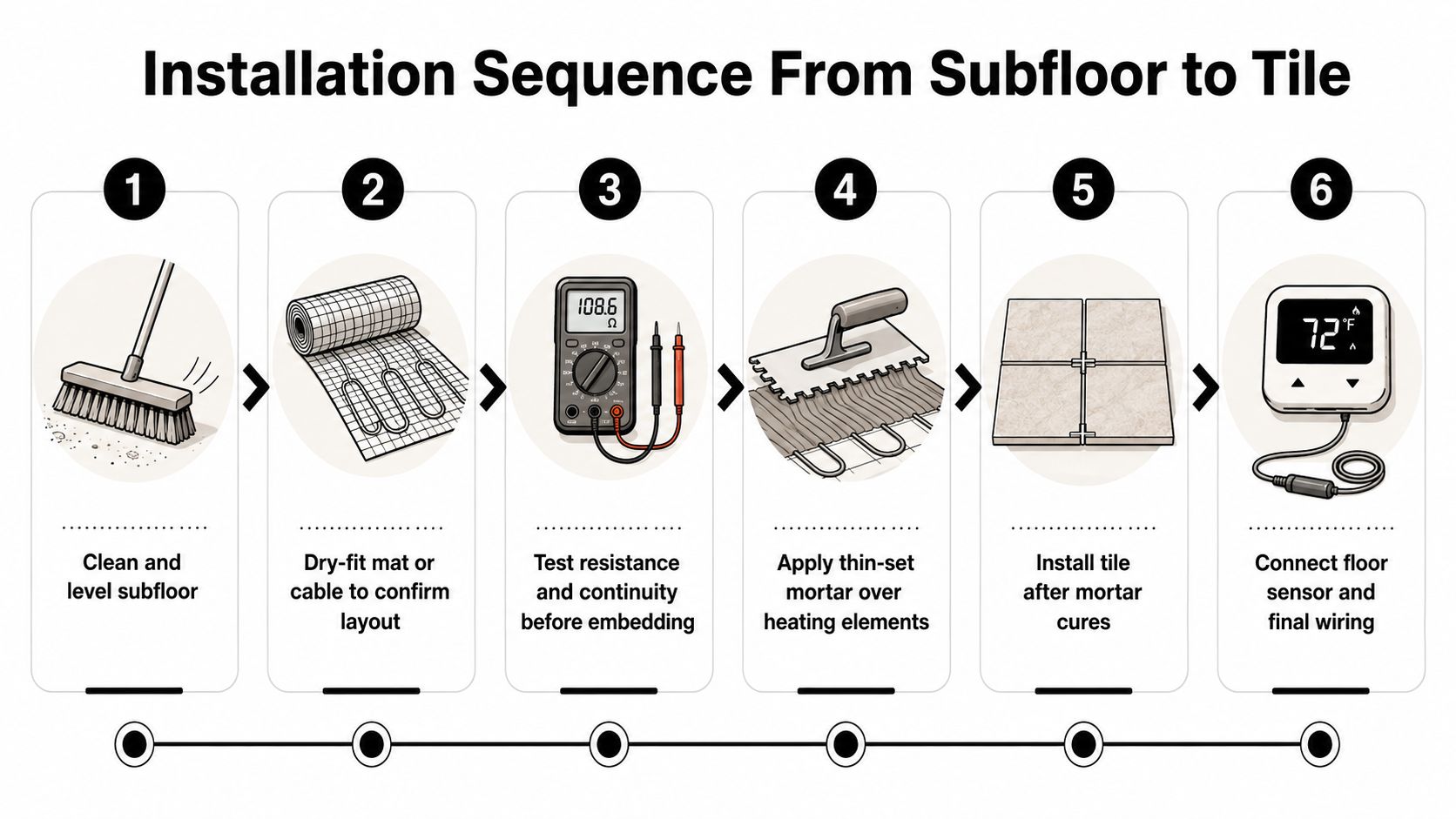

The Installation Sequence From Subfloor to Tile

The work starts with a clean, flat surface. Dust, sharp fasteners, and leftover debris are a bad combination with heating wire, because a small nick can become a big repair later. I've seen jobs go sideways when the crew rushed straight into mat placement without checking the substrate carefully first.

The next move is dry-fitting the layout. That means rolling out the mat or cable, confirming the coverage, and making sure the sensor and transition points land where they should. Before anything gets embedded, the heating element should be tested with a digital multimeter, and one installation guide says the measured resistance should be within 15% of the manufacturer's listed value. That test is one of the cheapest ways to protect the whole project.

Catching damaged wire before the tile goes down is a nuisance.
Catching it after tile is set is a demolition problem.

After the layout is confirmed, the mat gets secured without piercing the wire, the floor sensor is placed exactly where the manufacturer calls for it, and the system is buried in thinset or self-leveling compound. For tile-over-radiant-floor work, one guide specifies a quarter-inch thinset layer over the heating system, allowed to set overnight before tile is bedded, and the floor is commonly not energized until the mortar has cured for about 7 days, depending on product specifications. That wait matters more than impatient homeowners expect, because heat turned on too early can compromise the assembly.

If the project includes tile choices that need a little more coordination, the planning notes in large format tile installation are worth reviewing before the first bag of thinset is opened. Large tile makes flatness, bond quality, and layout discipline even more important.

For subfloor prep or insulation board selection, Tilerite insulation board for bathrooms is the kind of product homeowners ask about when they want a more stable base under the heating system. The right board doesn't replace good prep, but it can support the assembly when the remodel calls for it.

Build Order That Usually Works

1. Prep the subfloor. Clean it, flatten it, and confirm the surface is ready for tile work.
2. Dry-fit the heat mat or cable. Check that coverage matches the plan and avoids fixtures.
3. Test the system. Verify resistance before the mat is buried.
4. Secure the element. Lock it down without damaging the wire.
5. Set the sensor. Place it where the manufacturer specifies.
6. Embed and tile. Cover the system, allow cure time, then install the tile.

Realistic Costs and Where the Money Goes

Most homeowners want one number, but a heated bathroom floor budget works better as layers. The material cost for electric systems usually runs $5 to $20 per square foot, labor adds $4 to $10 per square foot, and electrical connection work often falls in the $200 to $500 range. Nationwide Builders cites a national average of $700 to $1,400 installed for a standard 50-square-foot bathroom using an electric heating mat system, while WarmlyYours gives a similar $700 to $1,400 range for a 36 to 40 square foot family bathroom. You can see how quickly the quote depends on room size and scope.

A heated floor is often cheapest when it's folded into a tile remodel. Nationwide Builders says adding heat during a tile remodel can add only $400 to $900 above the tile work, which is far less painful than tearing into a finished room later. That's why remodel timing matters as much as product choice. The heating system itself is only part of the bill, the key variable is whether the room is already open.

For a small guest bath, the math usually stays manageable because the open floor area is limited and the electrical work is simple. A larger primary bath changes the picture fast, especially once the flooring, sensor runs, and labor time expand with the room. The same system can feel affordable in one layout and stretched in another, which is why I always ask homeowners to price the heated square footage separately from the tile package.

If you want a broader benchmark for the whole remodel budget, the average cost to remodel a bathroom guide from Northpoint Construction is a useful comparison point because heated floors should be measured against the full bath scope, not against tile alone. That keeps the upgrade in proportion and avoids sticker shock when the room already needs surface work, plumbing updates, or finish changes.

Budget Lines to Ask For

• Heating materials: mat or cable, sensor, thermostat, and accessories.
• Labor: subfloor prep, layout, embedding, and tile coordination.
• Electrical work: dedicated circuit, connection, and inspection-related tasks.
• Tile-related scope: underlayment, thinset, and any floor build-up needed for the assembly.

DIY Versus Hiring a Contractor

A confident DIYer can handle parts of an electric heated bathroom floor installation, especially if the person is already comfortable with tile work and simple electrical coordination. The risk isn't that the system is mysterious, it's that the failure points are expensive. A cut wire, a bad resistance reading, or sloppy sensor placement can turn a manageable project into a floor tear-out.

Hiring a contractor shifts that risk, but it also shifts accountability. A pro should be able to explain who pulls the permit, who tests resistance, how subfloor prep is handled, and what happens if the mat is damaged during install. Those questions aren't aggressive, they're basic project control. If a contractor can't answer them cleanly, that's a warning sign.

Ask for the install sequence in plain English before anyone starts work.

DIY usually makes sense when the homeowner has time, patience, and a clear understanding of the tile assembly. Contractor-led work makes more sense when the remodel has multiple trades, the bathroom is the only functioning one in the house, or the homeowner wants one company responsible for the full sequence. SouthRay Kitchen & Bath is one option when you want the tile, flooring, and prep work coordinated under a remodel team that already handles those pieces.

Questions Worth Asking Any Installer

• Who pulls the permit? You want that answer before the first day on site.
• Who does the resistance testing? The person responsible should state when it happens.
• What subfloor prep is included? Don't assume leveling is part of the bid.
• What if a mat is damaged? You need the repair plan before installation begins.
• How is the warranty handled? The heated floor should be tied to the broader remodel scope if possible.

Permits, Code, and Northern Colorado Considerations

In Fort Collins, Loveland, and Windsor, the permit question usually turns on electrical scope. If the project adds a new circuit or requires upgraded electrical work, that's where the permit conversation usually starts. The tile itself doesn't drive the permit, the electrical work does. That's why the first call should be about scope, not just the product.

The screenshot below is a reminder that bathroom remodels and heating upgrades tend to overlap with broader building-permit questions.

Bathroom floor heat usually gets inspected as part of the electrical rough-in before everything is closed up. That timing matters because inspectors need access to the wiring and connections, not a finished floor hiding the work. The final inspection happens after the finish work is complete, so the sequence has to be planned around tile curing and any thermostat wiring that still needs to be tied in.

For a deeper look at what triggers permit costs and admin steps on a remodel, the local overview in building permit cost helps frame the administrative side without turning the project into guesswork. That matters because homeowners often budget for materials and labor, then forget the paperwork and inspection timing.

Operating cost is usually modest once the system is installed. Running an electric bathroom radiant floor costs about $0.15 to $0.35 per hour, and one Canadian example puts a 5-square-metre bathroom at about $4 to $7 per month when used 2 hours per day, which is a helpful benchmark for Northern Colorado planning. In a cold stretch, that kind of comfort is part of why the upgrade feels practical instead of indulgent.

Northern Colorado's long cold snaps make a heated bath less of a novelty than many homeowners expect. Hard water also matters more for hydronic systems than for electric mats, because boiler-fed assemblies add plumbing complexity that doesn't buy you much in a single bathroom. The cleanest move is usually to bundle heated flooring into the larger remodel so the incremental cost stays reasonable and the floor assembly is built once, correctly.

---
