1 Inch PEX: A Complete Guide for 2026

Most homeowners hear the same advice during a remodel, if the water feels weak, just run 1 inch PEX and the problem goes away. That sounds sensible, but it's often wrong. Bigger pipe can help, yet in a real kitchen or bath remodel it only pays off when the layout, flow demand, and run length justify it.

A plumber doesn't size pipe by instinct, they size the system. 1 inch PEX is a useful tool for main trunks, manifold feeds, and longer supply runs, but it can be overkill for short branch lines and fixture connections that don't need the extra capacity. If you want a practical overview before you start comparing bids, the Praz Pure Water PEX resources are a solid place to review the basics.

Why Bigger Pipe Is Not Always Better Pressure

A lot of low-pressure complaints come from system problems, not pipe-size problems. If the shower feels weak because of mineral buildup, a partially closed valve, undersized fixtures, or a poor layout, upsizing one section will not fix the whole house.

The part homeowners usually miss

Pipe size affects friction loss, not just the feel of water at the tap. A larger tube can preserve pressure better on a long run, but it does not create new pressure on its own. If the actual issue is a short, restrictive branch or a fixture problem, 1 inch PEX becomes a more expensive way to miss the true cause.

Practical rule: use larger pipe where the house needs to move water efficiently over distance, not where you hope it will act like a pressure booster.

That is why remodel plumbers think in terms of main supply, distribution trunk, and fixture branches. A kitchen and bath project often benefits from one or two strategic upsizes, not from making every line as large as possible. If you size the whole project as a system, the stronger pipe goes where it can reduce drag.

For a homeowner, the question is simple. Is the run long enough, and is the demand high enough, that the larger line will keep the system more stable? If not, the upgrade can add bulk, cost, and fitting complexity without changing the shower one bit.

A practical overview on pipe sizing and water delivery is available in the 1-inch PEX guide from Praz Pure Water, especially if you are comparing branch runs to supply trunks in a remodel.

What 1 Inch PEX Actually Measures and How It Performs

The name 1 inch PEX is a plumbing size designation, not a literal outside diameter. Under ASTM F876 dimensions, a 1-inch PEX tube in the common CTS system has an actual outside diameter of 1.125 inches, a minimum wall thickness of 0.125 inches, and an average inside diameter of 0.875 inches. That's why the label can confuse homeowners who assume the number on the box describes the outside measurement.

Why the nominal size matters

CTS sizing is standardized, so the label lines up with fittings, valves, manifolds, and other parts made for that system. In other words, the trade is matching components, not guessing based on the printed number. The same standard lists 3/4-inch CTS PEX at 0.875-inch OD and 0.681-inch ID, which shows how much more internal capacity the 1-inch size carries in a residential layout.

That extra interior space is why 1 inch PEX is commonly used for higher-demand distribution runs. It gives water more room to move, which helps keep friction down as the run gets longer. In a remodel, that matters most when one line serves multiple fixtures or feeds a trunk before the layout branches off.

Pressure changes with temperature

PEX pressure ratings are not the same at every temperature. Commonly cited specifications put the material at 160 psi at 73°F and 100 psi at 180°F for baseline use in the U.S. That difference matters because hot-water service puts more stress on polymer tubing than cold-water service.

A separate commonly cited spec lists 160 psi at 74°F, 100 psi at 180°F, and 80 psi at 200°F, with a test requirement of 3 times the maximum working pressure or at least 40 psi, but not more than 100 psi. That's the part many homeowners never hear. Hot runs, recirculation loops, and water-heater-adjacent piping should be checked against the lower hot-water rating, not the cold-water number.

A simple way to think about it is this. 1 inch PEX is strong enough for the job when it's sized and installed correctly, but temperature still changes the available margin. The pipe is not a universal fix, it's a tool with clear limits.

When Upsizing to 1 Inch PEX Actually Saves Pressure

Upsizing only matters when the system is moving enough water for friction loss to become noticeable. On a short, lightly loaded branch, the gain can be small enough that nobody feels it at the faucet. On a longer run feeding several fixtures, the larger line can make the difference between a comfortable shower and a complaint callback.

Reading the numbers the right way

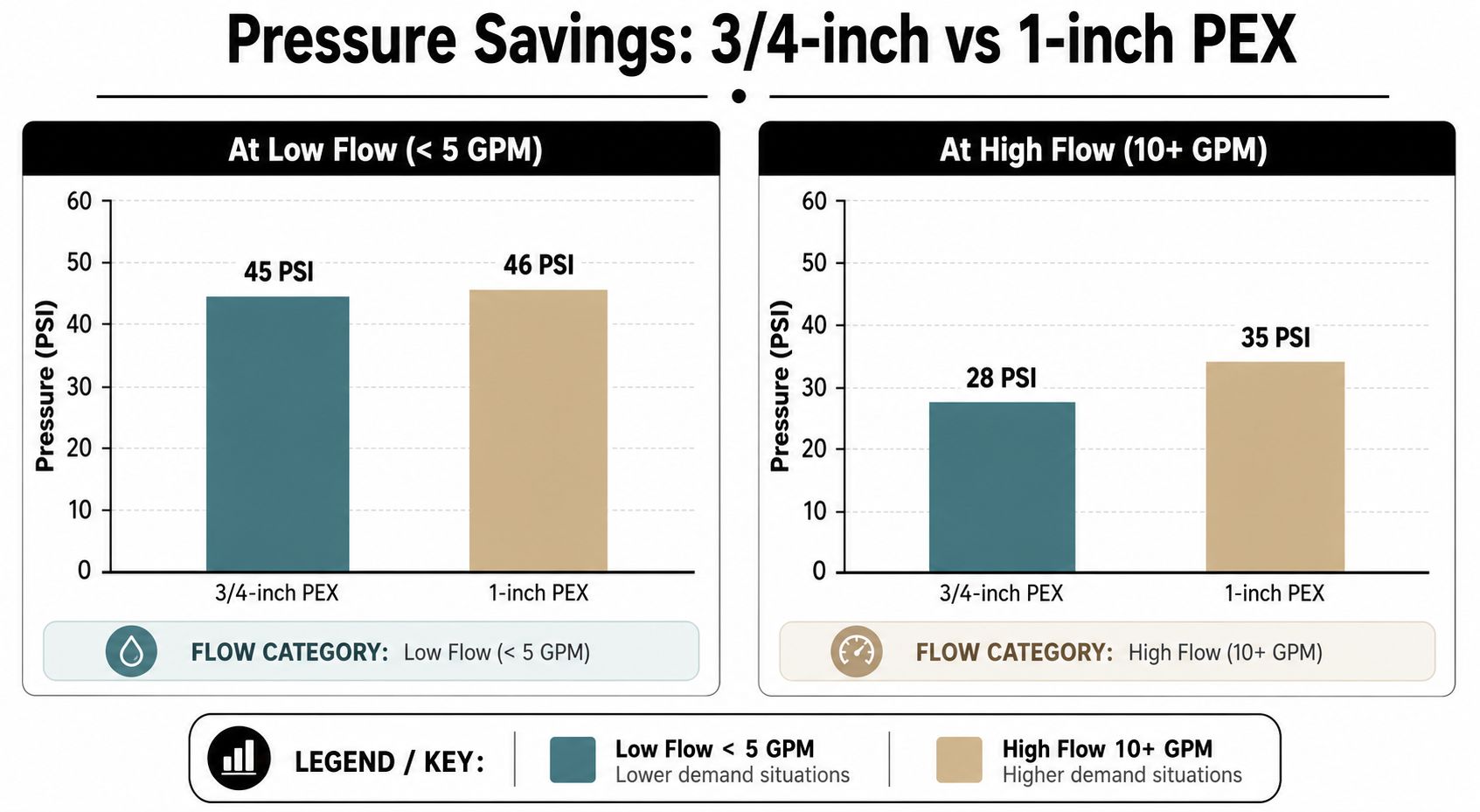

Independent sizing guidance shows that upsizing from 3/4-inch to 1-inch PEX can save only about 1 psi at 5 GPM, about 5 psi at 9 GPM, and about 7 psi at 11 GPM over a 50-foot run. Those figures matter because they show the benefit is tied to flow rate and distance, not to pipe size in the abstract.

That's the remodel trade-off. If your layout has a short run, a low-demand branch, or a fixture that already performs well, the difference may be too small to justify the bigger tubing. If the line is long, the home has multiple simultaneous draws, or the trunk feeds a busy bath group, the extra diameter starts earning its keep.

What that means on a remodel

In practical terms, 1 inch PEX is most defensible when you're protecting pressure before the system branches into smaller lines. That includes long kitchen supply runs, feeds to multiple bathrooms, and trunk lines that would otherwise carry a lot of demand through a narrow path.

Good sizing habit: ask your contractor where the line is acting as a main supply and where it becomes a branch. The answer tells you more than the pipe label does.

If you're comparing quotes, don't ask, “Should everything be 1 inch?” Ask, “Where does the larger size reduce friction enough to matter?” That question usually exposes whether the recommendation is based on the house design or just a blanket upgrade.

Where 1 Inch PEX Earns Its Keep in Kitchen and Bath Remodels

The best use for 1 inch PEX is usually upstream, before the plumbing splits into smaller branches. That's where the bigger diameter helps the whole system, especially in homes with a busy kitchen, more than one bath, or a long chase from the water heater to the fixtures.

The spots where it actually helps

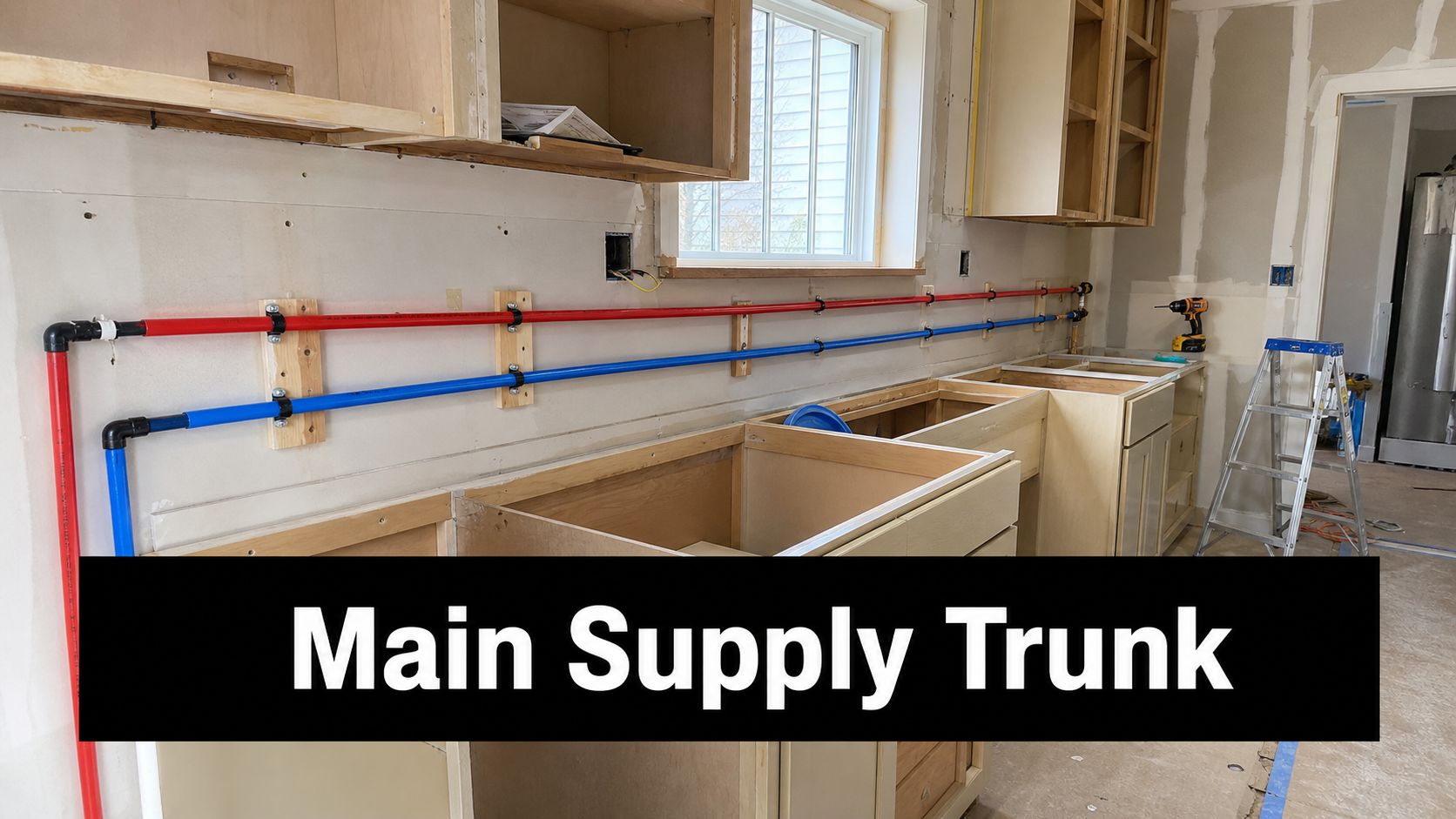

A remodel plumber will often use the larger size for a main supply trunk or manifold feed. That keeps the pressure more stable when several fixtures pull at once, and it reduces the chance that one use steals too much from another. It also makes sense on a recirculation loop, where the line is carrying hot water across a longer distance and needs to do that without excessive restriction.

The same logic applies to some water treatment and reverse osmosis supply routes, especially when the plumbing design has long travel distances before it reaches the point of use. In those cases, the larger line can help the system feed the downstream equipment without unnecessary drag.

Where it often does not belong

A short branch to a sink, toilet, or vanity usually doesn't need 1 inch PEX. The pipe may be physically capable, but the extra bulk can make routing harder, crowd cabinets, and add fittings that don't improve performance. In a tight kitchen or bath wall cavity, that matters.

PEX tubing is commonly rated at 160 psi at 73°F and 100 psi at 180°F, and 1-inch PEX is commonly associated with higher flow capacity in the range of roughly 15–20 GPM for distribution use, according to commonly cited guidance from the trade. That's why it belongs on supply runs where the demand is real, not on every branch just because it sounds premium.

Here's the most useful rule of thumb: if the pipe is carrying water to a cluster of fixtures, 1 inch PEX may be worth it. If it's feeding one fixture from a nearby wall, smaller tubing is usually the cleaner move.

Planning a Code-Compliant PEX Layout for Your Remodel

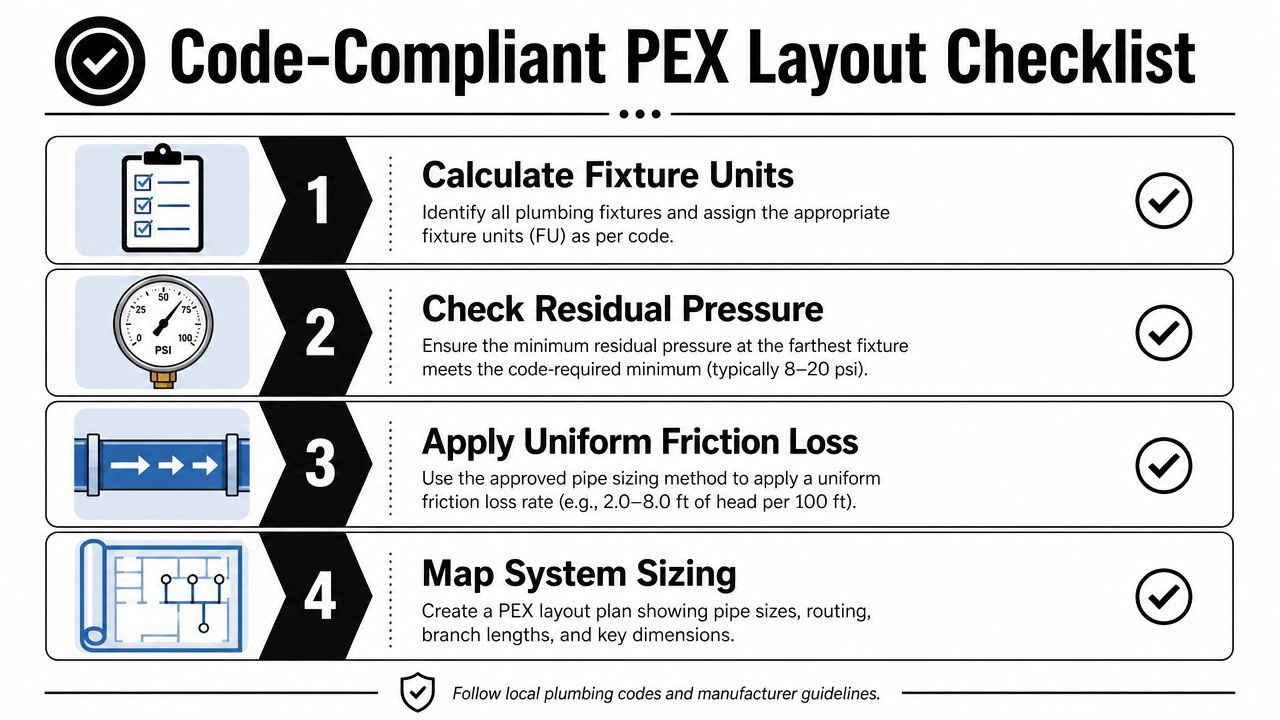

A good layout starts with the whole house, not with one pipe size in isolation. Professional sizing leans on fixture-unit tables, residual-pressure calculations, and uniform friction-loss methods, because those tools tell you where the system needs capacity and where it doesn't.

The design choices that matter most

A code-compliant layout usually does three things well. First, it keeps the main supply sized for total demand. Second, it reduces into smaller branches where the demand falls off. Third, it supports the tubing correctly so movement doesn't create noise, stress, or long-term wear.

That support piece gets overlooked a lot. PEX expands and moves, so risers and mid-story guides need real planning, especially in remodels where the tubing runs through open framing and tight chases. If the line is left floating, it can rub, shift, or stress fittings over time.

Plain-language advice: oversized pipe is only half the job. If the layout lacks support, the system can still perform poorly.

The common remodel mistake

The most common error is oversizing some visible runs while undersizing the parts that control pressure. A homeowner sees 1 inch PEX in one place and assumes the whole system is upgraded. In practice, a smaller hidden branch or an awkward routing choice can limit performance long before the big pipe reaches the fixture.

If you're reviewing a remodel plan, ask where the fixture units were calculated, where residual pressure was checked, and where the line transitions from trunk to branch. Those questions force the design conversation away from guesswork and toward a layout that works.

For a related planning topic that often affects bathroom layouts, see the local guide on bathroom plumbing venting. Venting and supply sizing are different systems, but they both shape how well the room works.

Comparing 1 Inch PEX to Other Sizes and Materials

Choosing between 1 inch PEX, 3/4-inch PEX, and copper is less about fashion and more about the job the pipe has to do. In a remodel, the right answer depends on how much water the line carries, how much room you have to run it, and whether the system benefits more from capacity or from compact routing.

Factor	1 Inch PEX	3/4-Inch PEX	Copper
Main use in remodels	Better for trunks and feeds	Better for smaller branches	Good for select runs where rigidity matters
Space needed	More bulk in chases and cavities	Easier to route in tight areas	Rigid, requires careful fitting and alignment
Pressure preservation	Strongest of the three for longer, higher-demand runs	Adequate for many branches	Solid performance, but layout depends heavily on installation
Installation effort	Moderate, with larger fittings and more planning	Easier to snake through framing	More labor-intensive, especially in cramped remodels
Best fit	Long supply runs and manifold feeds	Fixture branches and shorter lines	Projects that favor metal piping or existing copper tie-ins

How to think about the trade-off

For many homeowners, 3/4-inch PEX is the smarter choice on short branches because it's easier to place and often does the job without waste. 1 inch PEX earns its keep when the pipe is acting as a supply trunk or when the run is long enough that friction loss starts to matter. Copper still has its place, but it demands more installation skill and more room to work.

If you're comparing pipe types, a broader plumbing article like low water pressure house troubleshooting can help separate supply problems from fixture problems before you pay to replace the wrong section. That same logic applies to remodels, where the best fix is usually the one tied to the primary restriction.

A helpful companion read on material choice is copper pipes vs PVC, because the bigger decision is often about system design, not just pipe diameter.

Your 1 Inch PEX Decision Checklist for Remodels

Before you approve 1 inch PEX, ask five questions. Is this line a main trunk or just a short branch. Does the layout include long runs or multiple fixtures pulling from the same supply. Is the line carrying hot water where the lower pressure rating matters. Can the framing and chase support the larger tubing cleanly. Will the size change improve performance enough to justify the added bulk.

If the answer to most of those is no, 3/4-inch PEX may be the better remodel choice. If the line serves a demanding part of the house and the run length is real, 1 inch PEX can be the right call, especially when the rest of the system is sized with equal care.

For homeowners comparing bids, it also helps to understand labor and scope. A general overview like how much a plumber costs can give you context before you evaluate why one quote includes more pipe, more fittings, or a more involved layout than another.

If you're remodeling in Northern Colorado, talk through your kitchen or bath plumbing with SouthRay Kitchen & Bath and ask how the team handles pipe sizing as part of the full design, not as a last-minute add-on. A smart remodel uses the right size in the right place, which is exactly where 1 inch PEX proves its value.

---
