Bathroom Plumbing Venting: A Homeowner’s Guide for 2026

You're probably here because your bathroom is sending mixed signals. Maybe the sink gulps after you flush the toilet. Maybe the tub drains slowly even though the trap looks clear. Maybe there's a faint sewer smell that shows up, disappears, and then shows up again right when guests come over.

A lot of homeowners assume those symptoms mean “drain clog.” Sometimes they do. But very often, the issue is bathroom plumbing venting, which is the air side of your plumbing system. It's the part nobody sees, but it has a direct impact on whether your bathroom feels clean, works properly, and stays odor-free.

When I talk through remodel plans with homeowners, venting is one of those details that sounds minor until you understand what it controls. Then it becomes obvious why a bathroom layout that looks simple on paper can become expensive, delayed, or problematic if the venting plan is wrong.

The Unseen Hero of Your Bathroom

Think of your plumbing system like a set of roads. Wastewater needs a path out, but air also needs a path in and out so the whole system can move smoothly. That hidden air path is the vent system.

Without it, drains don't behave the way they should. Water can slow down. Traps can lose their water seal. Odors can sneak into the room. Fixtures can start interacting in strange ways, like one sink reacting when a toilet flushes nearby.

A good way to think about it is this. Your drain pipes move water. Your vent pipes let the plumbing system breathe.

Practical rule: If a bathroom fixture gurgles, smells, or drains inconsistently, don't assume the visible fixture is the whole problem. The issue may be happening in the venting behind the wall or above the roof.

Homeowners often put venting in the same mental bucket as the bathroom exhaust fan, but they're not the same thing. A fan removes humid air from the room. If you're also sorting out moisture and air movement in the space itself, this guide to bathroom ventilation system installation is a useful companion. Plumbing venting, by contrast, manages air pressure inside the drain system.

Why remodels bring venting issues to the surface

A bathroom can limp along for years with marginal venting. Then a remodel happens. The vanity moves. The shower gets bigger. The toilet shifts a few feet. Suddenly the old setup doesn't fit the new plan.

That's when venting becomes a project issue, not just a plumbing issue. It can affect framing, wall space, inspection approvals, and whether your contractor can keep the layout you want without awkward compromises.

What homeowners usually miss

The initial focus is often on finishes first. Tile, fixtures, lighting, storage. That makes sense. But venting is one of the systems that determines whether those finished surfaces stay attached to a bathroom that functions well.

If you remember one thing, make it this: proper bathroom plumbing venting isn't a technical extra. It's what helps a bathroom stay functional, safe, and free of sewer odors.

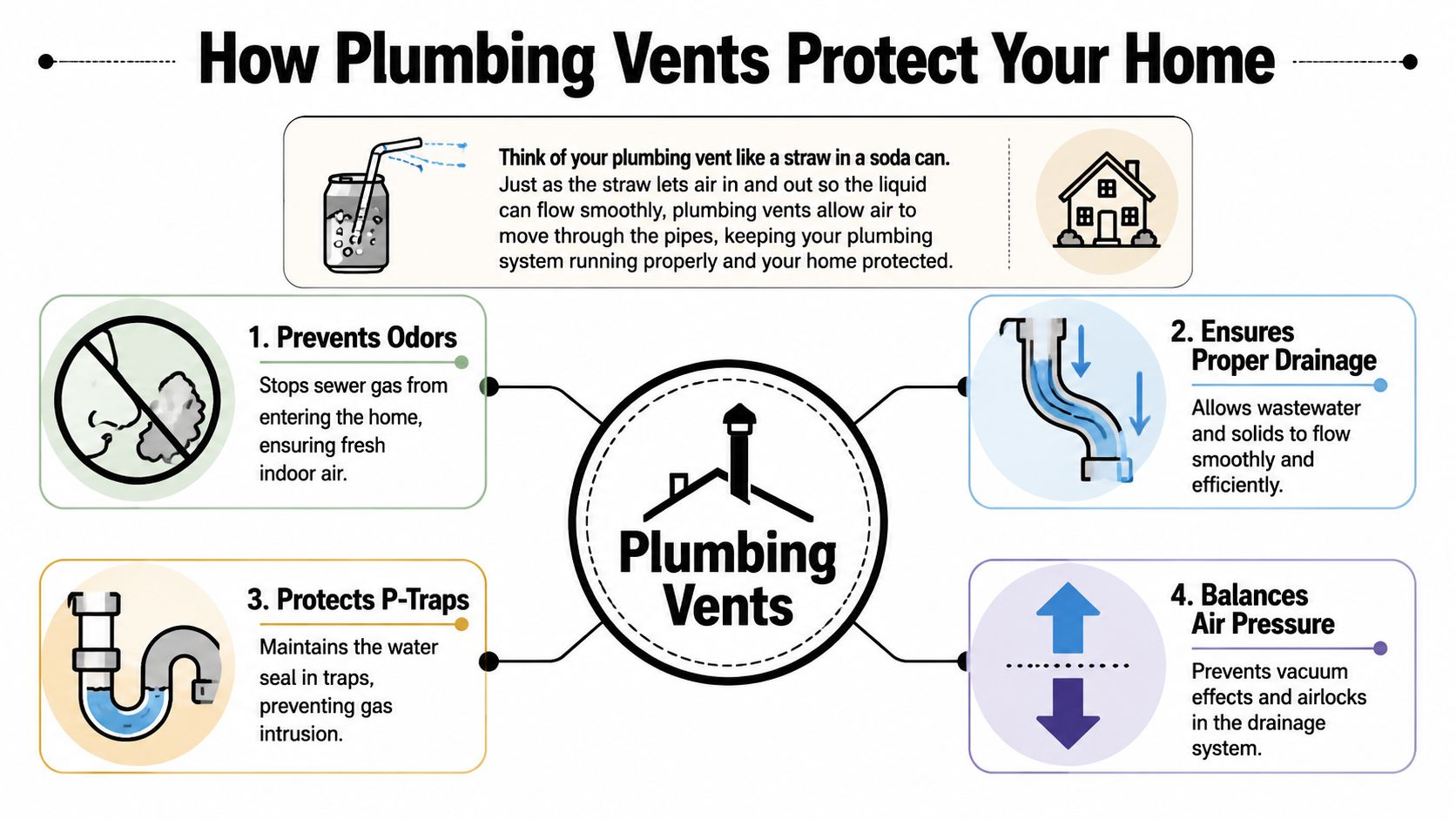

How Plumbing Vents Protect Your Home

Here's the easiest way to understand the physics. Put a straw in a drink, place your finger over the top, and lift it. The liquid stays in the straw because air can't move freely. Your drain system behaves in a similar way. When water rushes through a pipe, it changes pressure inside that pipe. If the system can't pull in replacement air, problems start fast.

The American Society of Plumbing Engineers defines the main job of plumbing venting as protecting trap seals by balancing air pressure, with better drain flow being a secondary effect, as explained in this overview of how plumbing vents protect trap seals and indoor air. That same source notes that vents help prevent siphonage, where negative pressure pulls water out of a trap, and back-pressure, where positive pressure can push sewer gases into the home.

The P-trap is your bathroom's gas seal

Under your sink, and built into other fixture drains, there's a curved section of pipe called a P-trap. That bend holds water. The water sitting there isn't an accident. It's a seal.

That seal blocks sewer gas from coming back into the room.

When venting is done properly, the pressure on both sides of that trap stays balanced enough that the water remains in place. When venting fails, the moving wastewater can pull that water out or disturb it enough that odors start showing up indoors.

What can go wrong without enough air

A vent system helps with two pressure problems.

• Negative pressure: Water moving down the drain can act like a plunger and try to suck air from the nearest available place. If the vent can't supply that air, the system may pull it through a nearby trap.
• Positive pressure: Air can also compress inside the drain system and push the wrong direction. That pressure can force foul gas back toward fixtures.

That's why a bathroom can smell bad even when you don't see a leak.

A vent doesn't exist mainly to make drains faster. It exists to keep the trap seal intact so sewer gas stays where it belongs.

What this means in everyday use

You don't need to think about air pressure while brushing your teeth. Your plumbing should handle that for you. In a healthy system:

• The sink drains without gulping
• The toilet flushes without changing the tub's behavior
• The shower doesn't release drain odors
• The room stays neutral, not sour or musty from sewer gas

If one fixture seems to affect another, that's often your clue that the venting side of the system deserves a closer look.

Common Bathroom Venting Systems Explained

Not every bathroom uses the same venting approach. The right choice depends on the layout, wall space, fixture arrangement, and local code requirements. Given these variables, homeowners often hear terms like “dry vent,” “wet vent,” or “AAV” and aren't sure what any of them mean.

Individual dry vents

An individual dry vent is the cleanest concept to understand. One fixture gets its own vent connection, and that vent pipe carries air only. It doesn't carry waste from another fixture.

This is why many plumbers consider dry venting the gold standard. In the ASPE wet and circuit venting guidance, individual dry vents are described as the best option because each fixture trap gets a dedicated vent that never receives waste. The same guidance explains that wet venting requires careful sizing, including a minimum 2-inch pipe for 4 drainage fixture units or less and 3 inches for 5 drainage fixture units or more, and that a lavatory and tub branch requires a minimum 2-inch pipe. You can review those specifics in the ASPE document on wet and circuit vent sizing and dry vent practice.

For a homeowner, the tradeoff is simple. Dry vents are straightforward and reliable, but they can require more pipe and more room inside the walls.

Wet vents

A wet vent is a pipe section that serves as both a drain and a vent in an approved configuration. This is common in bathrooms where a lavatory drain is arranged to also vent a toilet or tub group.

Wet venting can be smart design. It can save wall space and simplify a tight layout. But it only works when the fixture order, pipe sizes, and routing follow code. This is not a “close enough” system.

Wet venting is where many remodel conversations get interesting, especially in small bathrooms where every inch of wall cavity matters.

Air admittance valves

An air admittance valve, often called an AAV, is a mechanical device that lets air into the system without a full vent pipe continuing through the roof at that location. In plain English, it can help solve a layout problem when a traditional vent route is difficult.

But an AAV isn't a magic shortcut. It may be allowed in some situations and restricted in others. It also solves only part of the venting problem, because it admits air inward rather than replacing the role of the main vent stack entirely.

Comparison of Bathroom Venting Methods

Vent Type	How It Works	Best For	Considerations
Individual dry vent	Dedicated vent pipe serves one fixture and carries air only	Remodels where reliability and code clarity matter most	Uses more pipe and wall space
Common or branch vent	One vent arrangement serves more than one fixture in a planned group	Standard bathroom groups with conventional layouts	Requires correct fixture grouping and routing
Wet vent	A drain pipe also provides venting for connected fixtures in an approved setup	Tight bathrooms where space savings matter	Must be sized and sequenced correctly under code
Air admittance valve	Mechanical valve allows air into the drain system locally	Remodels where a traditional vent route is difficult	Local approval varies, and it doesn't replace every venting need

What to ask when a contractor suggests one method over another

Don't stop at “this is the way we usually do it.” Ask why that method fits your bathroom.

Good questions include:

• Why is this venting method right for this layout?
• What wall or ceiling space does it require?
• Will this approach make future repairs harder?
• Is this method commonly approved by our local inspector?

Those questions shift the conversation from plumbing jargon to project decisions you can evaluate.

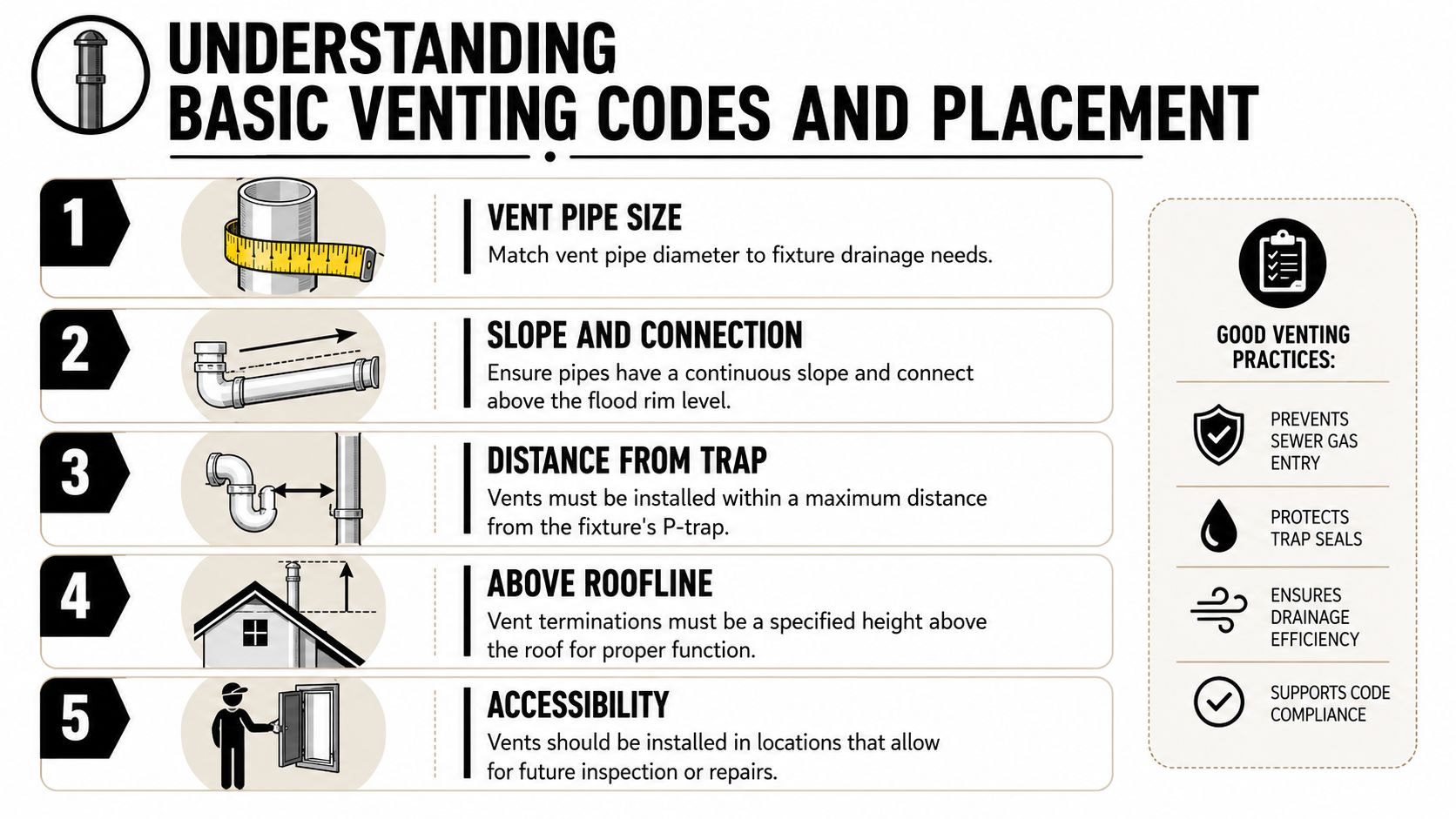

Understanding Basic Venting Codes and Placement

Plumbing code can feel like a wall of numbers until you translate it into plain language. Most venting rules exist for one reason: to keep wastewater moving the right direction and to keep sewer gas out of the living space.

The 2021 International Plumbing Code says vent pipes must be at least one-half the diameter of the drain they serve, with a strict minimum of 1¼ inches. It also gives a clear example: for a 3-inch drain, a 1½-inch vent is required. The code further requires vent connections to be at least 6 inches above the flood-level rim of the highest fixture served. Those details appear in the IPC venting brochure published here: 2021 IPC vent sizing and connection height requirements.

What those rules mean in plain English

If a contractor says a vent is “half the drain size,” that isn't a rough guess. It's a sizing principle tied to the drain it serves.

If someone combines vents from multiple fixtures, the connection point can't just happen anywhere in the wall. The code requires that connection high enough above the highest fixture's flood rim to reduce the risk of wastewater backing toward the vent system.

Why placement matters as much as size

A correctly sized vent installed in the wrong place can still create problems. Venting depends on location, elevation, and how the vent ties into the drain system. That's why professional drawings matter during a remodel, especially when walls are opening anyway.

Code takeaway: Vent rules aren't paperwork for paperwork's sake. They're there to protect trap seals, prevent backflow paths, and keep the bathroom safe to use every day.

A practical resource for reading plans

If you want a homeowner-friendly way to get more familiar with how plumbers match vent sizes to fixture loads, these DFU tables for plumbing vents from Aureli Construction are a handy reference. You don't need to memorize them, but they can help you follow the conversation when a contractor explains why one fixture group needs a larger vent path than another.

Signs of a Venting Problem in Your Bathroom

Most venting problems don't announce themselves clearly. They masquerade as clogs, random odors, or “old house quirks.” The pattern matters more than any single symptom.

Mild warning signs

Some issues start small.

• Occasional gurgling: A sink or tub makes a hollow gulping noise after nearby water use.
• Intermittent odor: You catch a sewer-like smell that comes and goes.
• One slow fixture with no obvious clog: The drain isn't fully blocked, but it never seems to flow smoothly.

A single symptom might still point to a local drain issue. But if these signs show up together, venting moves higher on the suspect list.

Stronger signs that suggest a system issue

When multiple fixtures start behaving oddly at once, pay attention.

• Several drains slow down together
• The toilet bowl level shifts when another fixture runs
• Bubbling or gurgling happens repeatedly
• Odors return after cleaning the drains

Those are clues that pressure inside the drainage system isn't balancing properly.

If you want a broader checklist for stack-related warning signs, this article on signs of plumbing stack issues is useful context because vent and stack problems often overlap in real homes.

What you can check yourself

A cautious homeowner can do a few basic checks without taking unnecessary risks.

• Look for patterns: Does the sink react when the toilet flushes?
• Notice timing: Do odors appear after heavy fixture use?
• Check the obvious fixture drain first: If one sink is slow, compare it to the others before assuming the issue is local.
• Review related plumbing components: If the problem seems centered at the vanity, understanding the bathroom sink drain pipe layout can help you separate trap issues from larger venting issues.

When to call a professional right away

Call a licensed plumber if the bathroom smells like sewer gas, if several fixtures are affected, or if the toilet and nearby drains are influencing each other. Those symptoms point to a larger pressure or drainage problem, not just hair in a trap arm.

Roof vent blockages, hidden vent misrouting, and behind-the-wall remodeling mistakes aren't good DIY experiments. They're the kind of issue that can waste weekends and still end with a plumber opening the wall.

How Venting Affects Your Bathroom Remodel Plans

Venting has a direct effect on remodel scope. Homeowners usually notice this the moment they say, “Can we move the toilet over there?” or “Can we put the shower on the opposite wall?”

The answer might be yes. But the venting path, not the fixture itself, often decides how simple or difficult that move will be.

Layout changes affect more than pipes under the floor

When you relocate a sink, shower, or toilet, you're not only moving a drain. You may also be changing:

• Wall framing needs
• Vent routing through walls or ceilings
• Pipe sizes in the bathroom group
• Inspection requirements
• How much demolition is needed

That's why a bathroom plan can look simple on a design sketch but still require meaningful plumbing rework once the venting is mapped.

Wet venting can help small bathrooms, but it has limits

Projected 2025 renovation trends point to more small-bath remodels using wet venting to save wall space, but the same source says failure rates are 30% higher when local code amendments are ignored, because wet venting is not universally permitted without strict fixture sequencing and distance limits. That finding appears in this article on wet venting rules and remodel failure risks.

For homeowners, the lesson is simple. A compact layout isn't automatically a cheaper layout. If the design depends on wet venting, your contractor needs to know exactly what your local jurisdiction allows.

Before you finalize fixture locations, it also helps to understand the broader material and access implications behind the walls. This comparison of copper pipes vs PVC in remodeling projects adds useful context when you're evaluating what stays, what gets replaced, and why.

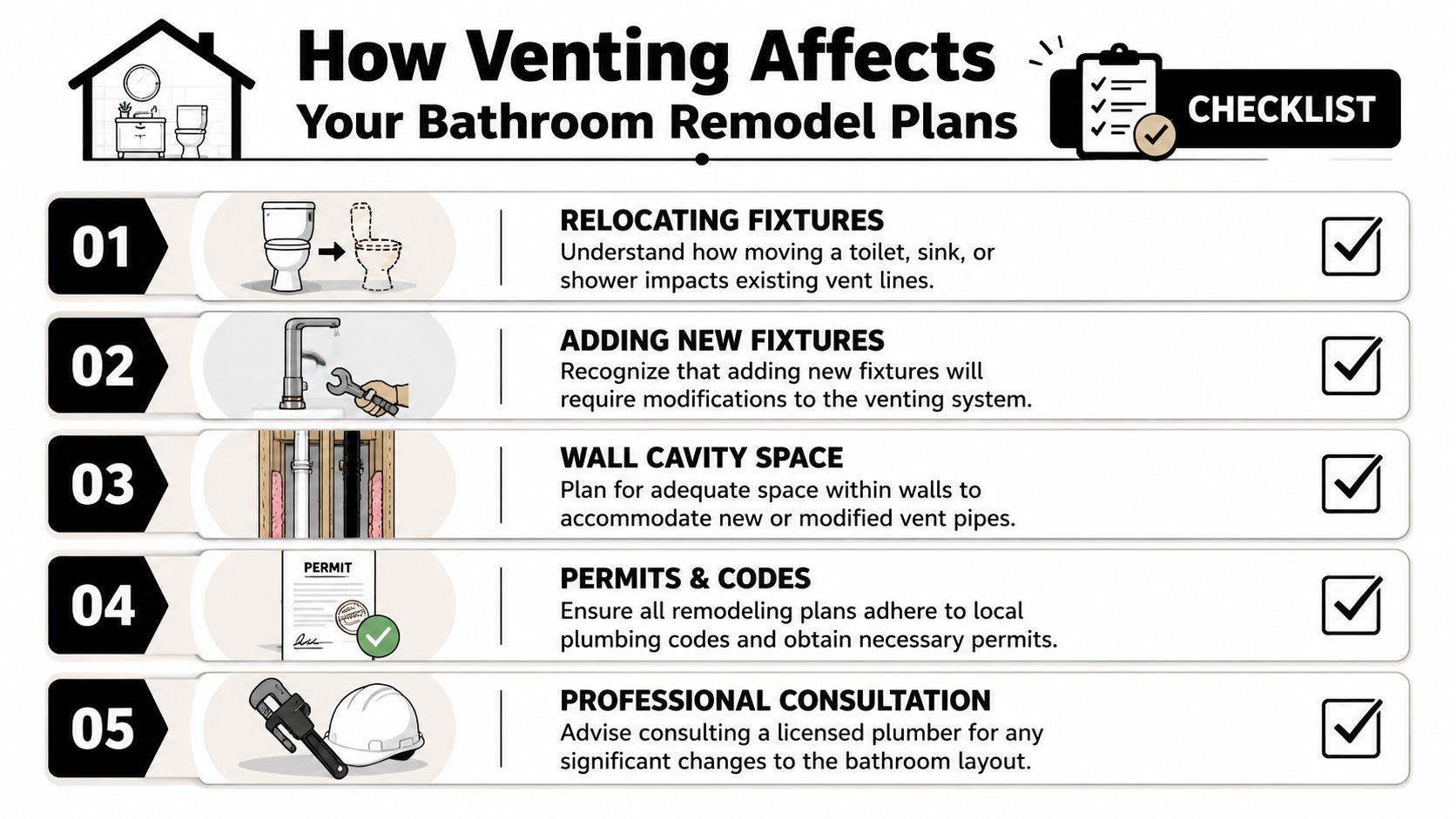

Here's a quick visual checklist worth reviewing during planning:

Questions to ask your contractor before work begins

A strong venting conversation sounds specific, not vague. Ask questions like these:

1. How will the new layout be vented to code?
   Ask for the explanation in plain language. You should understand whether the plan uses dry venting, wet venting, or another approved method.

2. What part of this layout is hardest to vent properly?
   This gets you past sales talk and into the actual constraint.

3. Will the venting plan require opening additional walls or ceilings?
   That affects schedule, patching, and finish costs.

4. Are you relying on any local code exception or special approval?
   If the answer is yes, ask how that will be documented before construction starts.

5. What happens if the existing venting behind the wall isn't usable?
   This is the kind of contingency question that protects your budget and timeline.

Bathrooms fail in expensive ways when the venting plan is treated like an afterthought. Good remodel planning deals with it on paper before tile and trim ever show up.

Frequently Asked Questions About Bathroom Venting

Can a plumbing vent end in the attic or crawlspace

No. A plumbing vent needs to terminate in a way that safely releases sewer gas outside the living environment. Ending it in an attic or crawlspace can let those gases collect where you don't want them.

Are air admittance valves always a good remodel solution

They can be useful in the right situation, especially when routing a traditional vent is difficult. But they aren't a universal substitute for proper system venting, and local approval matters. If a contractor proposes an AAV, ask why it's being used and whether your jurisdiction accepts that application.

Do freestanding tubs and island-style fixtures make venting harder

They can. Fixtures that sit away from convenient wall cavities often need more careful planning because the vent path is less direct. That doesn't mean they're a bad idea. It means they should be designed with the plumbing in mind from the start.

Does shower design affect plumbing planning too

Yes. Shower size, drain location, curb style, and fixture placement all influence how much room the plumbing system has to work. If you're comparing layouts, these important shower measurements are a useful design reference before you lock in dimensions.

What's the best homeowner mindset going into a remodel

Stay curious, not technical. You don't need to become the plumber. You do need to ask clear questions, expect a code-compliant explanation, and make sure the venting approach fits the bathroom you want.

---
