Reverse Osmosis System Installation: A 2026 Guide

You've filled the kettle in your Fort Collins kitchen, set it on the stove, and noticed the faint metallic taste again. The faucet has a ring of hard scale, and the dishwasher left a pale film on the glasses. In an older Northern Colorado home, those clues don't automatically point to one solution, but they do justify looking beyond a generic under-sink filter.

Reverse osmosis system installation can be a practical retrofit when the priority is cleaner drinking and cooking water at one tap. The right choice depends less on the box at the home-improvement store and more on incoming pressure, cabinet space, drain access, plumbing age, and the water you're treating.

Why Northern Colorado Homes Are Turning to Reverse Osmosis

A 1960s ranch near Collindale can have a remodeled kitchen above galvanized pipe, an awkward shutoff, or a shallow cabinet shaped around an old drain. That combination makes reverse osmosis system installation a retrofit decision. The under-sink space, incoming pressure, and drain connection may determine the system before the product label does.

Fort Collins, Loveland, and Wellington properties also differ by water source and utility setup. Municipal service and private wells can bring different concerns, including mineral scale and site-specific contaminants. Test for hardness, dissolved solids, nitrate, uranium, and other concerns instead of guessing. For arsenic questions, PureHQ Inc. arsenic guides explain why equipment selection should follow the water report.

Point-of-use treatment fits many kitchens

The U.S. Environmental Protection Agency describes a point-of-use RO system as a plumbed-in or faucet-mounted unit that treats drinking or cooking water at one or several taps. It does not treat most water used for bathing, washing, or flushing. That makes an under-sink RO unit a different project from a whole-home softener. RO targets selected kitchen water, while a softener addresses conditions throughout the plumbing system.

EPA materials describe RO as capable of removing many contaminants, including inorganics, dissolved solids, radionuclides, and synthetic organic chemicals. The process pushes water under pressure through a semi-permeable membrane, separating treated permeate from concentrate, also called reject water. Homeowners can review this plain-language explanation of how reverse osmosis systems work before comparing system types.

Practical rule: Use a water test to identify the treatment target, then use the kitchen layout to confirm that installation is feasible.

Older plumbing needs a careful inspection before drilling or cutting. A saddle valve on a fragile galvanized riser can fail when disturbed. A cabinet may not leave enough clearance to remove filter housings, and a drain saddle may collide with a crowded branch serving the dishwasher or disposal. Low incoming pressure can also reduce production and may point toward a booster pump. Verify pressure at the intended connection rather than assuming the municipal supply will be adequate.

Water efficiency belongs in the selection decision as well. EPA materials identify efficiency as an important part of RO performance and discuss WaterSense criteria for these systems (EPA WaterSense RO system materials). A system that fits the cabinet but sends excessive water to the drain may be a poor retrofit for a household trying to reduce waste.

The practical choice may be a compact tankless model, a storage-tank system, a booster pump, or a licensed plumber for old, tight, or code-sensitive connections. A homeowner can measure cabinet depth and inspect access. Pressure testing, altered drains, and brittle supply piping deserve more caution.

Planning Your Install Before You Open a Box

Start with the water, not the product description. A basic strip kit can give a homeowner a rough indication of hardness or other conditions, but it won't replace a certified laboratory report when nitrate, uranium, or another contaminant affects the purchase decision. Ask the lab what its report measures, and keep the results available when comparing membranes, pre-filters, and remineralization stages.

A result showing hardness above 10 gpg, TDS above 500 ppm, nitrate over 5 mg/L, or detectable uranium should influence model selection. Those thresholds are planning markers, not a substitute for professional interpretation. If the results are concerning or inconsistent, have a qualified water-treatment professional review them before choosing equipment.

Match capacity to household habits

A couple in a modern Wellington townhome may value a compact 50 GPD tankless unit and minimal cabinet use. A family of five in a two-story Fort Collins home may need a 75 to 100 GPD four-stage system with enough storage and recovery for repeated kitchen use. Someone moving away from bottled water may prefer a six-stage system with remineralization for a different taste profile.

Household	Typical Demand (gal/day)	Recommended GPD	Stages	Booster Pump Needed?
Couple in a compact home	Qualitative, light daily use	50 GPD	Compact tankless configuration	Only if pressure is marginal
Family of five	Qualitative, repeated daily use	75 to 100 GPD	Four-stage configuration	Consider when pressure is low
Bottled-water replacement household	Qualitative, high drinking-water reliance	Select for actual demand	Six-stage with remineralization	Based on measured pressure

Residential systems generally operate in the 40 to 80 psi range, with 50 psi commonly used as a test or conditioning pressure (NSF/ANSI 58 installation requirements). Below about 40 psi, production and tank fill speed can fall sharply, and a booster pump may be necessary. Don't guess from the pressure shown on a nearby hose bib. Measure static and operating pressure at the actual feed point.

Confirm the plumbing route

Look for a dedicated cold-water shutoff, a stable mounting surface, enough cabinet depth for filter changes, and a compatible drain section before the system arrives. NSF/ANSI 58 requires installation, flushing, and conditioning according to the manufacturer's instructions, and it specifies a drain connection through a vertical air gap. Local plumbing and sanitation rules still control the final configuration.

An under-sink replacement may not require a permit, but Fort Collins and Larimer County requirements can change when you alter a branch drain, cut into a stack, add electrical work, or install components affecting backflow protection. Check with the relevant authority before cutting. If you're building a tool kit for the project, this home-repair tool guide from Value Tools Co. can help identify the basics without treating every installation as a DIY job.

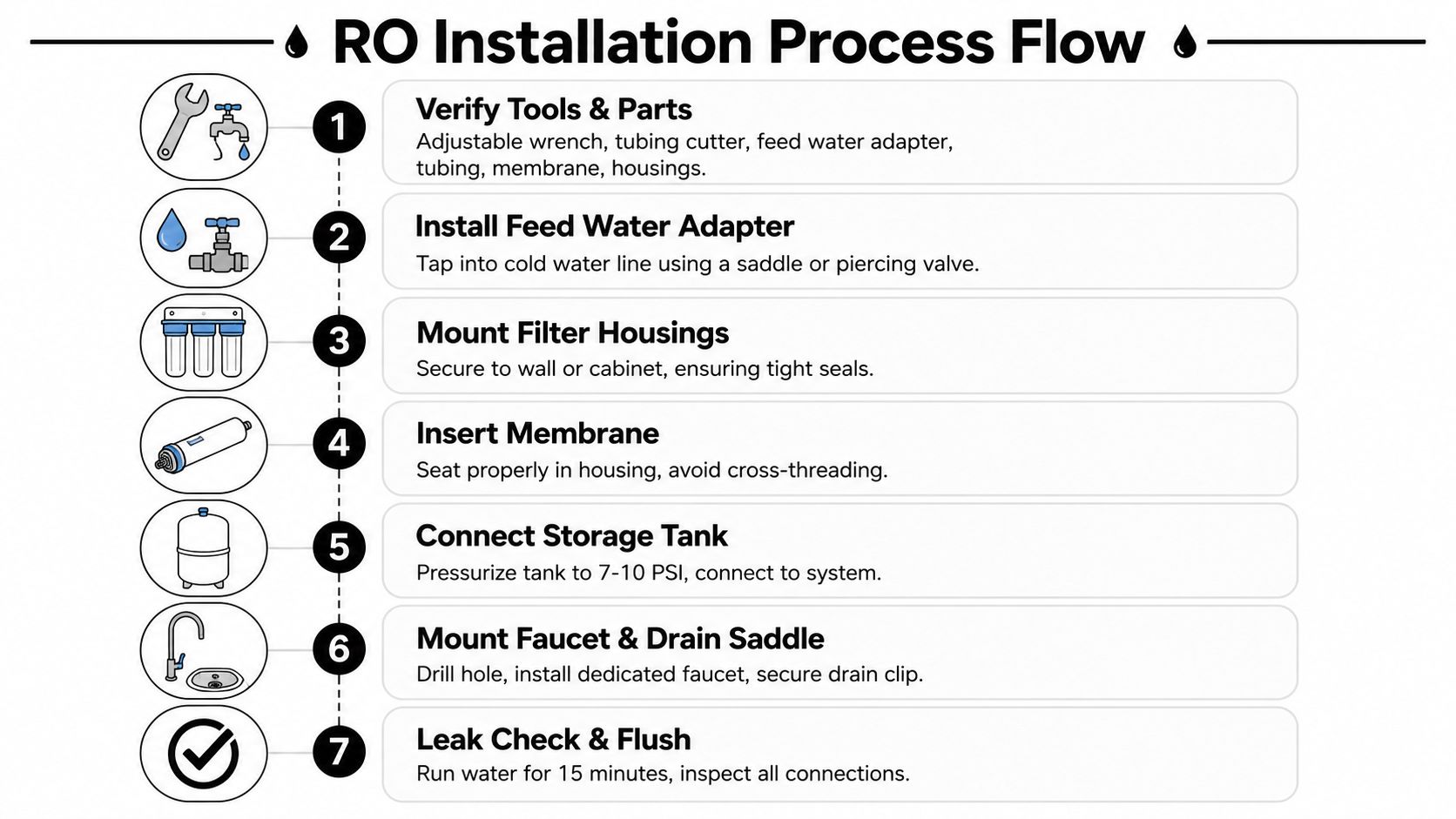

Walking Through the Actual Installation

Verify the system parts before shutting off water. Set out an adjustable wrench, tubing cutter, suitable drill bit, Teflon tape where the manufacturer calls for threaded tape, and the included push-fit fittings. Older Fort Collins kitchens may have porcelain-enamel sinks, so drilling requires the correct bit and a steady approach. Confirm whether an unused soap-dispenser opening can accept the RO faucet before drilling a new hole.

Make the connections in the right order

Close the cold-water stop or feed valve, then open the kitchen faucet to release pressure. Keep a towel and a shallow container under the connection. A sound feed connection uses the manufacturer's adapter and a leak-tight 1/4-inch OD cold-water line. Don't force an adapter onto damaged threads or a corroded saddle valve.

Place the storage tank upright on a flat cabinet floor, with clearance behind it for the tubing and enough access to remove it later. Keep it away from heat and from a dishwasher drain hose that can warm the surrounding space. Mount the manifold securely, with the sediment and carbon pre-filters ahead of the membrane. Those pre-filters protect the membrane from sediment and chlorine exposure.

Follow the flow arrows on the membrane housing. Push each tube fully into its fitting, cut the end square, and give every connection a firm tug. Color coding helps, but it isn't a substitute for the manual. Tubing sequence is one of the most common points of failure, especially when a homeowner connects the faucet, tank, and drain lines from memory.

Treat the drain connection as a code and service issue

Place the drain saddle on a straight section before the P-trap, using the required vertical air-gap arrangement. Avoid the section downstream of a disposal or dishwasher branch. That location can encourage clogging and may produce slow-drain or odor complaints. The saddle outlet should face down, and the drain route should avoid loops that hold water.

Drill the faucet opening only after checking clearance below for the sprayer hose, mounting hardware, and cabinet frame. Porcelain, stone, and composite surfaces can crack if drilled with the wrong bit or excessive pressure. When the faucet is secure, connect the product-water line and any air-gap lines exactly as specified.

The RO installation guide from Praz Pure Water, Inc. offers another visual reference for the general sequence. For a separate look at the faucet portion of the job, see this filtered-water faucet installation guide.

Open the supply slowly and bring the system up to household pressure. Inspect every connection continuously for 10 full minutes, including the feed adapter, housings, tank valve, faucet shank, and drain saddle. Flush the system according to its manual before drinking. A correct-looking installation that skips conditioning can still deliver poor first-use results.

Testing and Troubleshooting the New System

A new RO unit earns approval only after it performs under normal household conditions. Once the system has been flushed and conditioned, check incoming pressure, tank behavior, drain flow, taste, and product-water readings. A TDS meter can compare feed water with treated water, but it cannot identify every contaminant or replace laboratory testing.

Residential systems often recover about 20 to 30%, so one gallon of treated water can send three to four gallons of concentrate to the drain (residential RO recovery guidance). Lower-efficiency setups may discharge more. In Northern Colorado, cold feed water, marginal pressure, and long tubing runs can slow production. A tight older Fort Collins cabinet can also leave tubing sharply bent, restricting flow after the doors close.

Metric	Acceptable Range	Problem Indicator
Incoming pressure	40 to 80 psi (NSF/ANSI 58 guidance)	Below 40 psi, weak flow or slow tank fill
Empty tank pressure	Manufacturer specification, checked before service	Tank won't fill or delivers little water
Recovery	Residential performance varies by configuration	Excessive reject flow or unusually slow production
Product-water reading	Lower than feed-water reading after flushing	Little change, possible membrane or tubing issue
Drain behavior	Drain flow stops after the tank reaches pressure	Constant runoff, possible valve or check-valve fault

A slow faucet usually points to a clogged sediment or carbon filter, a kinked tube, or inadequate pressure. Confirm the supply valve is fully open and inspect tubing behind the cabinet before changing components. Constant drain flow more often indicates an automatic shutoff or check-valve problem. A metallic or sulfur-like taste can come from a bypassed post-carbon stage, poor membrane seating, or incomplete flushing.

The tank should hold pressure during a 24-hour hold test, without an unexplained drop or repeated cycling. If water still runs to the drain after the tank is full, close the feed valve and have the valve sequence checked. Do not keep chasing filter problems when the house pressure is below the unit's operating requirement, or when an older drain connection is restricting discharge.

NSF/ANSI 58 treats startup flushing and conditioning as part of installation quality. A system can have dry connections and still produce poor service if startup was rushed. Homeowners can perform these checks, but a licensed plumber should address pressure regulation, leaking stop valves, questionable drain connections, or cabinet modifications that could violate local code.

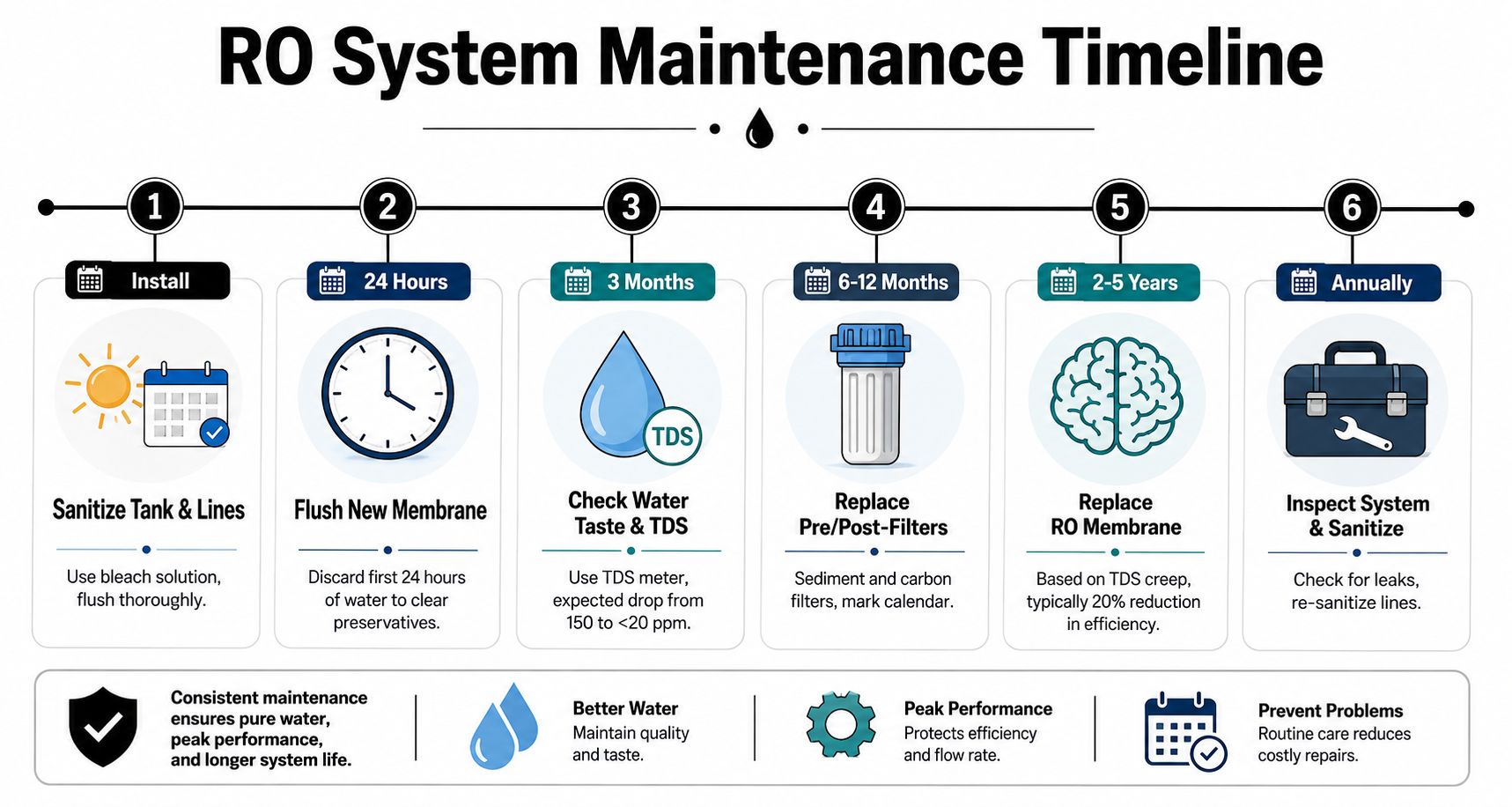

Keeping Your RO System Running Year After Year

Maintenance begins at installation. Sanitize the tank and lines using the manufacturer's procedure, flush the membrane and cartridges thoroughly, and don't serve drinking water until the initial conditioning process is complete. New carbon media can release fines, while a membrane may require extended flushing before the water is ready for normal use.

A practical routine includes:

• Pre-filter service: Replace sediment and carbon pre-filters every 6 to 12 months, adjusting for feed-water quality and actual use.
• Membrane review: Replace the RO membrane every 2 to 3 years when water quality and performance indicate it's needed.
• Annual measurements: Compare TDS before and after the membrane, check empty-tank pressure, and inspect the feed and drain connections.
• Leak inspection: Look behind the housings, around the tank valve, and beneath the drain saddle, where a slow drip can stay hidden.

The Front Range's mineral-heavy feed water can place more demand on a membrane than softer supplies. Don't wait for a bad taste alone. A rising product-water TDS reading, a slow tank, or a change in reject flow can reveal declining performance earlier.

For a broader checklist covering cartridges, sanitizing, and inspection points, use this water filtration system maintenance guide. Marking service dates inside the cabinet is simple and prevents the common mistake of replacing filters only after flow has already deteriorated.

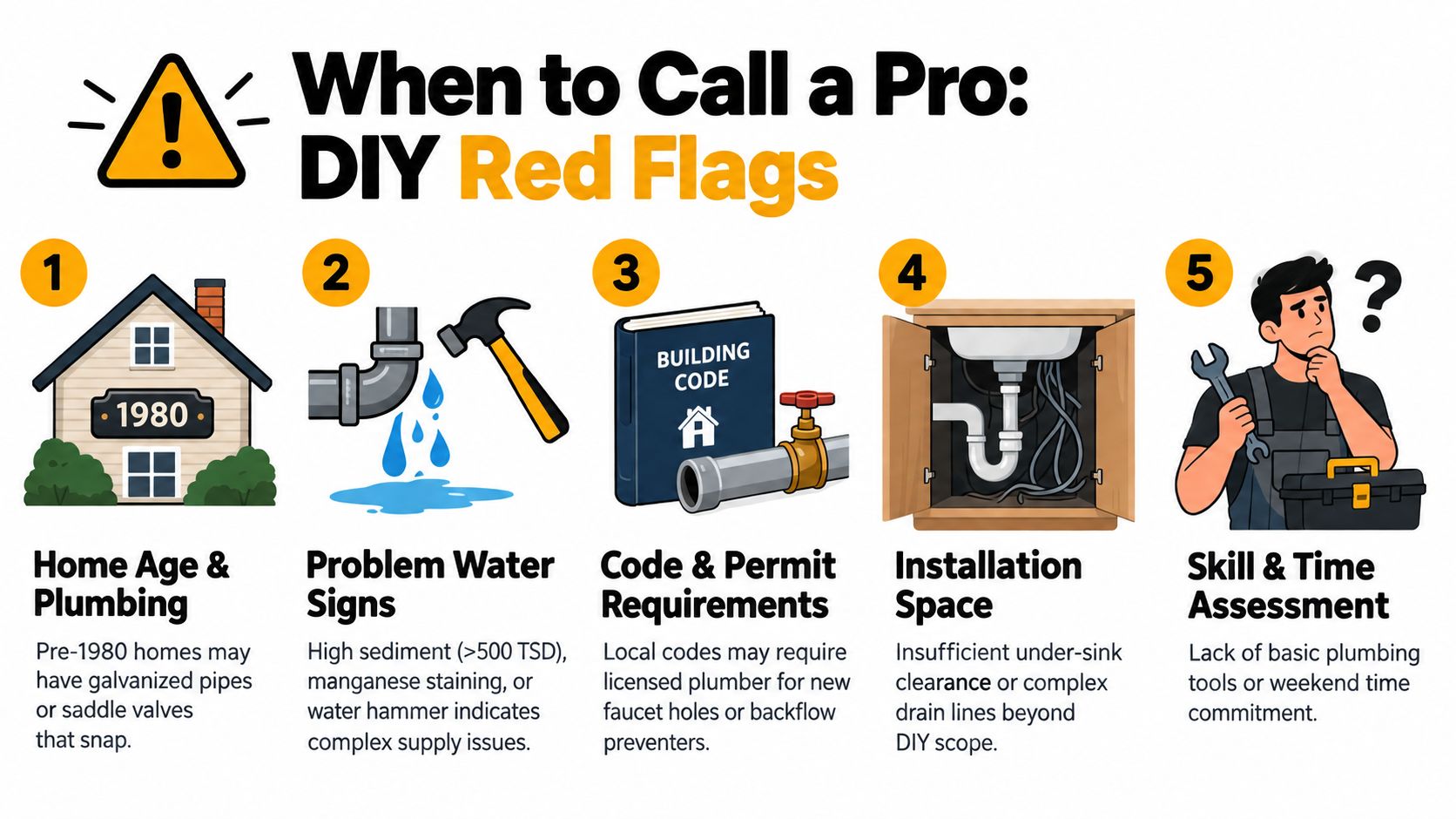

Knowing When to Step Back and Call a Pro

RO equipment is compact, but the surrounding plumbing may not be. A pre-1980 Fort Collins home can have galvanized risers, brittle compression fittings, or a saddle valve that's already near failure. Turning that valve may create a leak that has nothing to do with the RO unit and is difficult to stop without replacing the feed connection.

Static pressure above 80 psi also changes the job. The RO line needs a code-compliant pressure-reducing arrangement before the feed connection, not a makeshift restriction at the filter. A powered booster pump creates another decision point if the kitchen circuit is already crowded. A new dedicated electrical outlet should be handled by the appropriate licensed professional rather than improvised under the cabinet.

Use this self-sort before starting

A homeowner may be comfortable with:

• Parts verification: Reading the manufacturer's diagram, identifying the membrane, and confirming tubing sizes.
• Cabinet preparation: Clearing the area, checking depth, locating a stable mounting surface, and using an existing faucet opening.
• Basic push-fit connections: Cutting tubing square, inserting it fully, and performing a tug test.
• Startup observation: Opening the feed slowly, flushing the system, and watching for leaks.

Call a licensed plumber when:

• The feed valve is old or corroded: Especially when it's installed on galvanized piping or won't close reliably.
• The drain route is unclear: A new branch, PVC trap modification, stack connection, or backflow concern can trigger local requirements.
• Pressure is outside the normal window: Low pressure may need a booster pump, while high pressure may need pressure reduction.
• The surface or layout is difficult: Stone drilling, crowded cabinets, hidden framing, and inaccessible drain sections raise the risk of damage.
• Electrical work is involved: A new outlet or circuit should be evaluated separately from the water connections.

The cost-benefit question isn't limited to the installation charge. A licensed plumber's retrofit labor may be quoted at $250 to $450, but that figure must be weighed against cabinet damage, flooring damage, mold risk, or a leak that goes unnoticed for months. Those amounts are planning figures from the project brief, not a universal local price. Ask for a written scope that identifies the feed connection, faucet drilling, drain work, pressure correction, testing, and cleanup.

---
