Wheelchair Accessible Kitchen Guide: Plan, Remodel

You're standing at the kitchen counter with a hot pan, a cutting board, and nowhere to pull your wheelchair close enough to work safely. The sink is just out of reach, the cabinet holding the daily cookware has a stiff door, and the refrigerator blocks the only comfortable turning path when it's open. A kitchen can meet a dimensional requirement and still make an ordinary meal exhausting.

A wheelchair accessible kitchen works differently. It treats cooking as a sequence of movements, reaches, transfers, and handoffs between zones. Measurements matter, but they're useful only when they support the way a seated cook unloads groceries, prepares ingredients, controls heat, plates food, and cleans up.

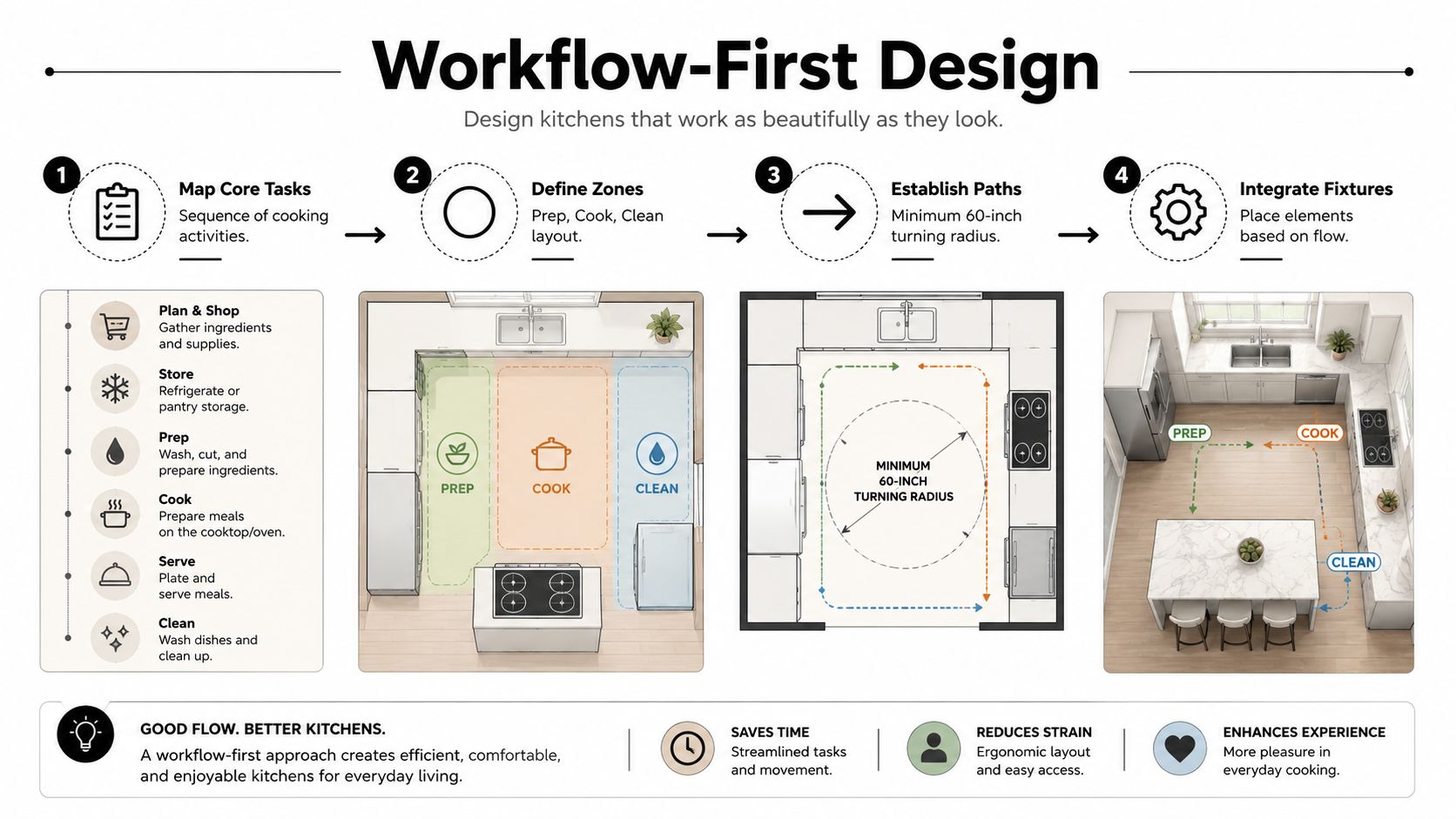

Why a Wheelchair Accessible Kitchen Is a Workflow Problem First

A code-compliant kitchen answers a narrow question: can a wheelchair user approach a fixture and move through the room? A usable kitchen asks a harder question: can that person complete dinner without repeated three-point turns, unsafe reaching, lifting across hot surfaces, or depending on someone else to retrieve basic tools?

Start with one real meal rather than a cabinet catalog. Trace the sequence from the hallway to the landing counter, then to the refrigerator, sink, prep surface, cookware storage, cooktop, plating area, and dishwasher. Mark every point where the chair must turn, reverse, reach sideways, or leave one zone to collect something needed in another.

Map the work before the room

Divide the kitchen into three practical zones:

• Prep: A roll-under counter, cutting board, mixing tools, and frequently used ingredients should sit together.
• Cook: The cooktop, utensils, pan storage, and a safe landing surface need to work as one unit.
• Clean: The sink, waste pull-out, dishwasher, and drying area should be reachable without crossing the hot zone.

Storage is part of the workflow, not a separate convenience. Research on inclusive kitchens and aging in place identifies storage access, task sequencing, and the effort required to coordinate tools and ingredients as distinct usability concerns, as documented in research on inclusive kitchen design.

Practical rule: If the cook needs to leave the primary work center for every tool, the layout is too scattered, even when the aisle widths pass inspection.

A turning area only helps where the user needs to change direction. Reserve the clearest movement path at the sink, prep zone, or cooktop, rather than placing generous open space in a corner that contributes nothing to meal preparation. The finished design should reduce the number of transfers and reaches required for a routine task, not just make the plan look spacious.

Auditing Your Existing Kitchen Before Any Design Decisions

Before choosing cabinets or appliances, measure the kitchen as it exists. A tape measure, phone camera, and a simple meal map will tell you more than a showroom visit because they expose the obstacles your household already works around.

Use a wheelchair if possible. An office chair can reveal some problems, but it won't reproduce the exact turning behavior, seat height, footrests, or reach envelope of the person who'll use the room.

Record movement and reach

Measure every doorway, aisle, corner, and approach to an appliance. Note places where the chair has to swing around an open oven, refrigerator door, or dishwasher. Record thresholds and floor transitions, including small lips that cause the casters to catch.

Check the following before the first design meeting:

• Approach space: Can the chair pull straight up to the sink, cooktop, and main prep surface?
• Storage reach: Which shelves require leaning forward, twisting, or reaching above shoulder level?
• Daily cookware: Where are the pans, cutting boards, plates, and food containers used most often?
• Utility locations: Photograph shutoffs, outlets, switches, plumbing lines, and hood controls before demolition.
• Open-door conflicts: Test each appliance with its door or drawer fully open, not just when closed.

Mark anything that forces the cook to reach across a burner or hot pan. U.S. accessibility standards require controls not to require reaching across burners, and they call for insulation or another protective configuration where a cooktop or range has knee space beneath it. The ADA accessibility standards provide the regulatory framework for these kitchen requirements.

Bring evidence to the design meeting

Photograph counter heights, cabinet interiors, floor transitions, and the exact location where groceries are placed. Make a short video of the route used to prepare a common meal, especially if another person currently retrieves items or moves hot cookware.

For broader planning beyond the kitchen, homeowners may also find this guide to accessible home changes for wheelchair users useful. It can help identify related entry, bathroom, and circulation issues that may affect the remodel.

Don't let a contractor design from a room outline alone. A good audit explains why a counter must be lowered, why a cabinet needs drawers, and why moving a sink may be more valuable than adding decorative storage.

Core Measurements and Clearances That Drive Every Choice

Accessible kitchen design depends on coordinated dimensions. The clear floor area, work-surface height, knee space, appliance approach, and doorway width must work together. A low counter is still unusable if the wheelchair can't pull underneath it, and a wide aisle is wasted if the refrigerator door blocks the turning path.

The Canadian government's accessibility-renovation guidance specifies a work area measuring 760 mm high, 785 mm wide, and 610 mm deep to support wheelchair access. The same guidance emphasizes clear floor space for forward or parallel approach, plus knee-and-toe clearance under work surfaces. See the Canadian accessibility-renovation guidance for the dimensional framework.

Use the standards as a design grid

U.S. and Canadian guidance converges on several foundational rules. Pass-through kitchens need two entries and at least 40 inches of clear width between opposing counters, appliances, or walls. Accessible work surfaces need space beneath them for a seated approach, and controls must remain usable without reaching over a cooking surface.

Missouri Extension offers a practical residential reference that places sink and range heights at 30 to 32 inches, a mixing counter at 27 inches, minimum knee clearance at 24 inches high by 24 inches wide, and reachable shelving in the 52 to 60 inch range. Its guidance also recommends a worktop depth no greater than 600 mm, a wheelchair turning circle of about 1400 to 1500 mm, and a 32-inch clear doorway. Review the Missouri Extension accessible kitchen guidance before finalizing cabinet drawings.

Measurement	Minimum	Recommended
Pass-through kitchen clearance	40 inches	Confirm locally for the complete movement path
Clear floor space for approach	30 by 48 inches	Place at the sink, prep surface, and key appliances
Canadian accessible work area	760 mm high by 785 mm wide by 610 mm deep	Match the seated user's reach and chair
Worktop depth	Not more than 600 mm in the cited residential guidance	Keep frequently used tools near the front
Doorway clearance	32 inches	Check the approach, threshold, and door swing together

These figures aren't a substitute for a site-specific review. Chair dimensions, transfer technique, upper-body strength, and the presence of another cook can change the best arrangement. Dimension the plan from the seated user outward, then verify the route on site before cabinets are ordered.

Choosing a Layout That Works for Seated Cooking

The right layout depends on who cooks, which tasks happen together, and where the chair needs to turn. A plan that looks efficient from above may force awkward backing, side reaches, or blocked approaches once appliances are open.

Layout	Minimum Aisle	Best Workflow	Main Trade-Off
U-shape	40 inches where the pass-through standard applies	Keeps prep, cooking, and cleaning close together	Corners can become dead zones and turning areas may disappear
L-shape	Verify the complete circulation path	Supports plating toward an adjacent dining area	One leg may place storage or appliances too far away
Galley	40 inches for a pass-through kitchen	Makes tools available on both sides	Opposing open doors can create a temporary blockade
Open plan with island	Preserve the required turning space at active stations	Works well with a lowered, roll-under island	The island can obstruct movement if positioned by appearance alone

U-shape and galley kitchens

A U-shape can keep the cook surrounded by supplies, but the inside corners need careful attention. Put the sink or prep area where the chair can turn, and avoid assigning the deepest corner to daily cookware. A galley can be highly efficient because storage and work surfaces sit on both sides, yet the aisle must remain clear when the oven, dishwasher, or refrigerator is open.

L-shapes and islands

An L-shape often works well when meals move directly from prep to a nearby dining table. It can also leave more open floor for turning, though the refrigerator may end up too far from the main prep surface if it's placed at the end of a run.

An island is useful only when it improves the workflow. Lower one section for seated preparation, provide knee and toe clearance, and draw the wheelchair's movement path around every corner. Don't sacrifice the turning area to gain more countertop.

Keep the sink, cooktop, and refrigerator close enough that the cook isn't carrying ingredients or hot cookware across the room. Reach arcs are more informative than a decorative floor plan, so sketch the chair's approach and turning path before approving the layout.

Cabinetry, Countertops, Appliances, and Plumbing

The components that get touched every day deserve the most attention. A seated cook needs storage that opens toward them, work surfaces that accept a close approach, and appliances whose controls and doors don't create a barrier.

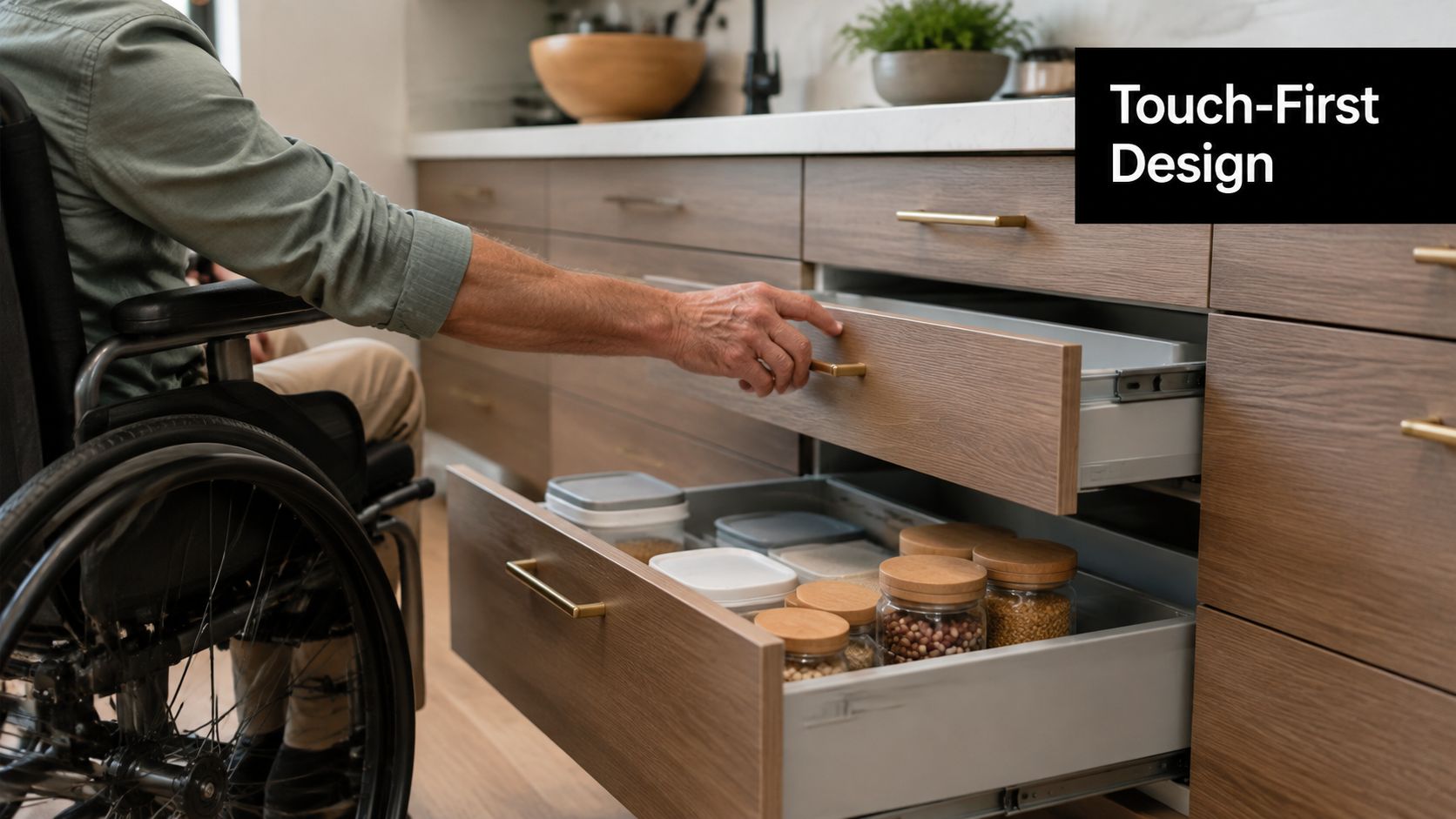

Use full-extension drawers in base cabinets wherever possible. Drawers expose their contents without requiring the user to reach past a door, and they can hold pans, cutting boards, plates, and mixing tools at practical heights. D-shaped or bar pulls work better than small knobs because they can be operated with a closed fist.

Build one dependable roll-under station

Set the primary counter within the seated user's comfortable range. Missouri Extension places a mixing counter at 27 inches, while Canadian guidance specifies a concrete accessible work area at 760 mm high, 785 mm wide, and 610 mm deep. The correct choice depends on the chair, posture, and task, so test a mock-up before fabrication.

Reserve knee-and-toe space at the prep sink or a dedicated pull-out work surface. The governing standards require seated usability and protective treatment beneath cooktops or ranges when knee space is provided. Counter edges should be eased, and island corners should be rounded to reduce impact during turns.

Choose appliances by approach, not appearance

A side-opening wall oven can let the user pull alongside the cavity instead of reaching over a drop-down door. Place the oven where a clear landing surface is available immediately beside it. Choose a cooktop with front-mounted controls, and don't require the user to reach across active burners.

French-door refrigerators can reduce the reach required to access the main compartment, but door swing and handle placement still need an on-site test. Drawer-style dishwashers can reduce bending, provided the open drawer doesn't block the primary route. Keep the microwave within the reachable storage band instead of placing it above a conventional range.

A shallow sink, rear-positioned drain, insulated hot-water lines, and a single-lever faucet can make the sink cabinet more comfortable. Touchless controls may help some users, but a dependable lever or backup control matters when sensors misread movement.

Coordinate the cabinet package

Cabinet construction affects access as much as the floor plan. Discuss drawer boxes, full-extension hardware, edge profiles, toe-kick storage, and removable panels before the order is placed. Homeowners comparing styles and construction methods can also review this guide on choosing kitchen cabinets.

If the remodel changes several surfaces, an accurate existing-conditions record prevents avoidable surprises. For larger or complex properties, ask the design team whether AEC capture is appropriate for a renovation. The point isn't the technology itself. The point is making sure the drawings reflect the actual room, utilities, and obstructions before fabrication begins.

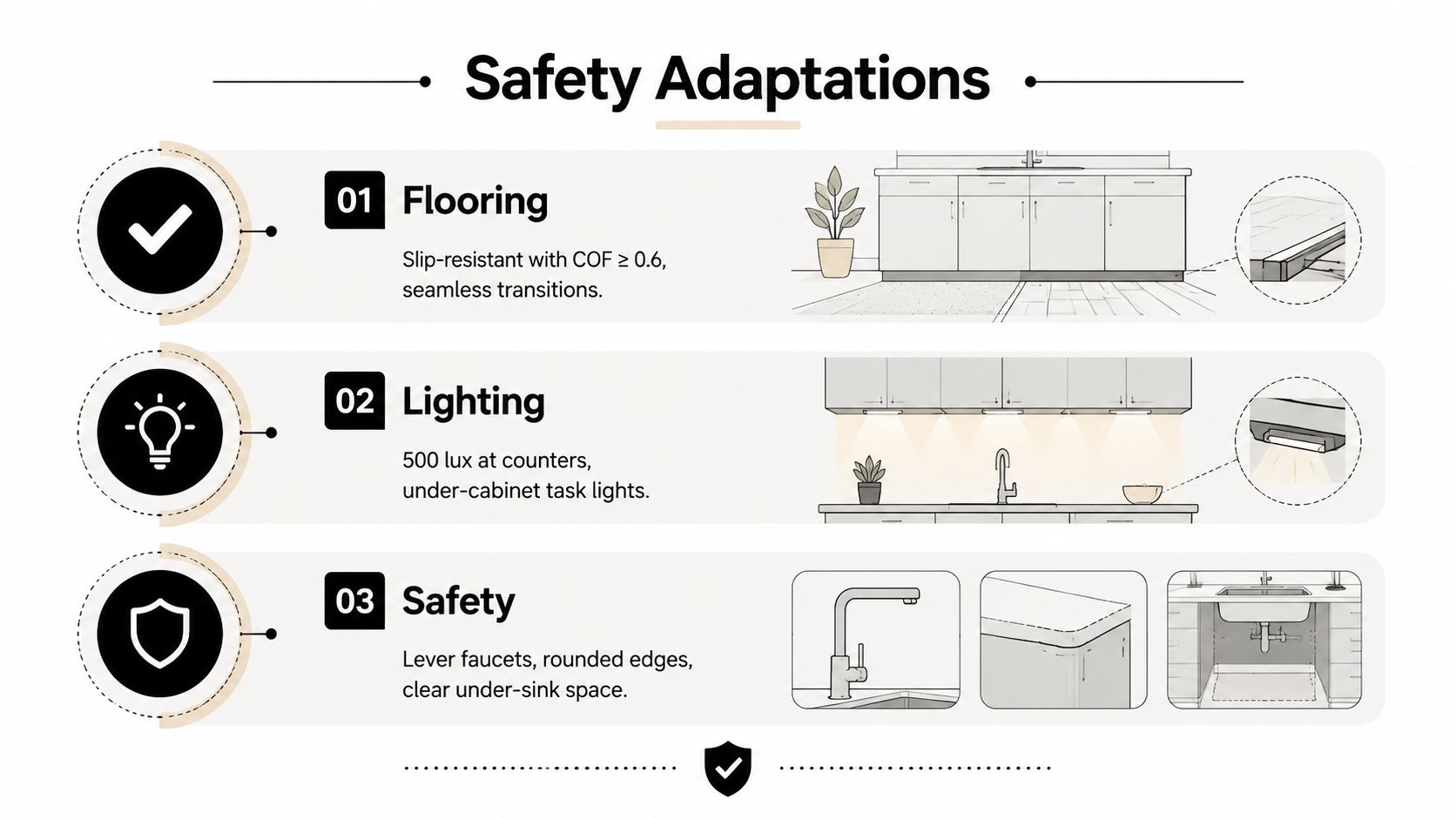

Flooring, Lighting, and Everyday Safety Adaptations

A wheelchair accessible kitchen needs a stable floor and predictable visibility. Glossy finishes, loose rugs, raised transitions, and reflected task lighting can turn a carefully measured plan into a frustrating or hazardous room.

Choose a slip-resistant floor with a coefficient of friction of 0.6 or higher, as specified in the provided accessibility planning guidance. Keep transitions smooth wherever possible, and avoid high-pile rugs in the movement path. Cushioned vinyl or rubber underlayment can make standing tasks less tiring for other household members and soften the impact when cookware or utensils fall.

Light the work surface, not just the ceiling

Use layered lighting. General ceiling fixtures provide orientation, while under-cabinet LED strips illuminate the counter without forcing the seated cook to work in the cabinet's shadow. Matte or low-glare finishes help control reflections from countertops and appliance fronts.

The supplied safety guidance calls for 50 or more foot-candles at task surfaces. Have the electrician show the proposed light locations on the plan, especially where upper cabinets, a hood, or a raised backsplash could cast shadows. The kitchen lighting design guide can help organize ambient, task, and accent layers without treating decorative lighting as the only priority.

Add controls that reduce strain

Use rocker or large-paddle switches mounted within the accessible reach zone. Install reachable GFCI outlets, protect exposed plumbing below a sink, and specify an anti-scald valve set to 120 F where local requirements permit that setting.

Contrast can improve wayfinding. A darker counter edge against a lighter surface, textured pulls, and rounded island corners help the cook read boundaries during a turn. Mount a fire extinguisher where it can be reached without blocking the chair's route, and make sure the placement doesn't require reaching over the cooktop.

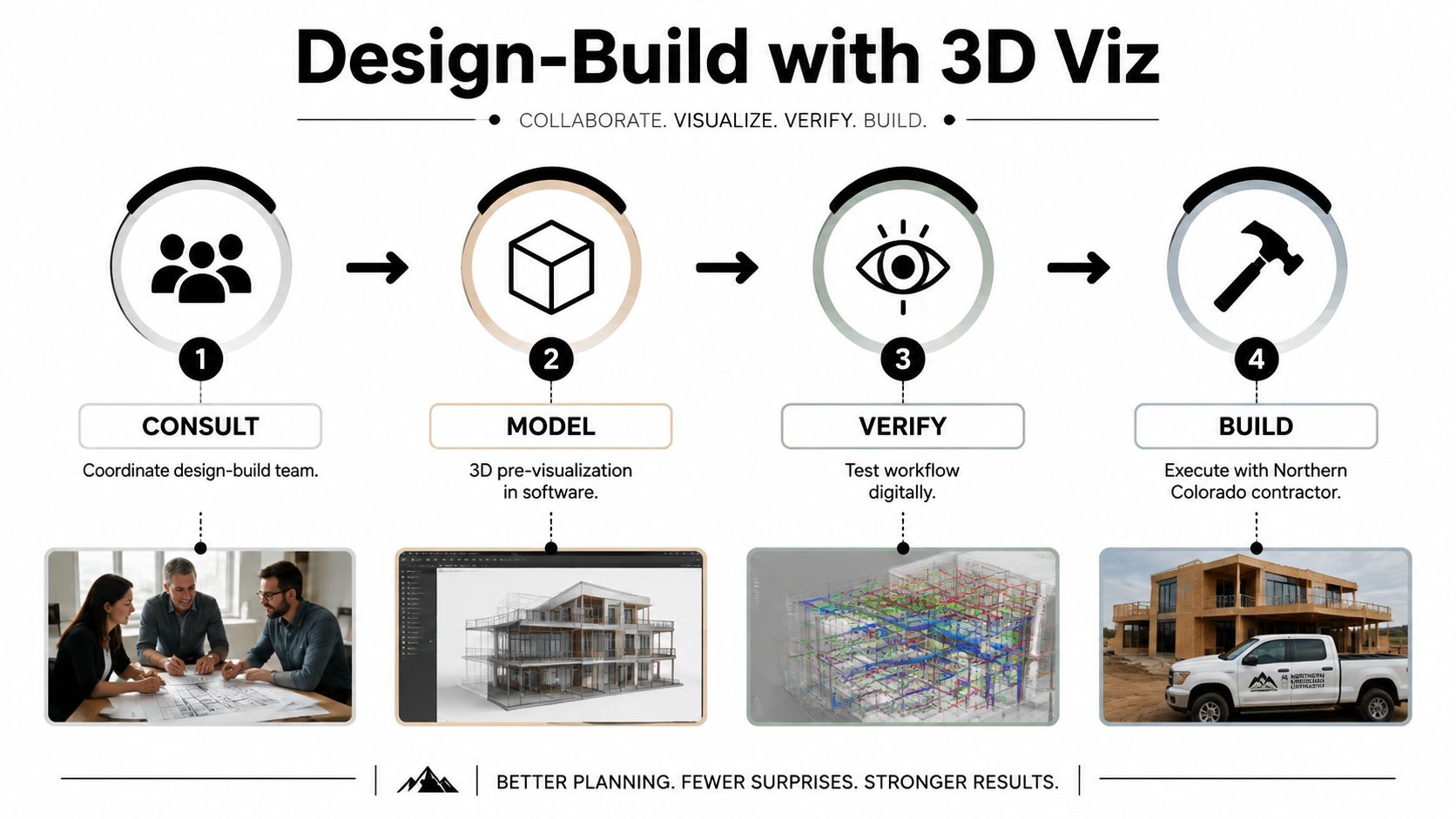

Working With Contractors and Using 3D Pre-Visualization

Accessible remodeling punishes disconnected decision-making. If the cabinet designer, electrician, plumber, appliance supplier, and installer each work from a slightly different plan, a few inches can disappear at every handoff. The result may be a sink with knee space but no comfortable approach, or an oven that opens directly into the only turning path.

A coordinated design-build process reduces those conflicts because one team carries the layout from measurement through installation and punch-list. For homeowners considering Northern Colorado contractors such as SouthRay Kitchen & Bath, the important questions are practical: has the team documented experience with accessible kitchens, will it complete a reach-and-clearance study before contract approval, and who owns the decision when a cabinet, appliance, or utility conflicts with the plan?

Review the model before ordering materials

A 3D walkthrough can expose problems that a flat plan hides. Sit in the actual chair, or use a chair with matching seat height and wheel position, while reviewing:

• Counter approach: Can the user pull in without hitting a cabinet stile or appliance handle?
• Knee-space depth: Does the chair fit beneath the surface without forcing the user too far from the work?
• Appliance reach: Can the user operate controls, open doors, and place a hot item on a landing surface?
• Movement path: Does an open refrigerator, oven, or dishwasher interrupt the route?
• Sight lines: Can the seated cook see the cooktop, sink, and work surface without leaning around tall elements?

The model isn't a substitute for a field test. It's a low-cost way to identify conflicts before tile, counters, and cabinet fillers are committed. Require dimensioned drawings, appliance specifications, finish samples, and a written sequence of work as part of the approval package.

Set a meeting cadence

A productive project usually has a clear decision rhythm:

1. Initial audit review: Confirm the user's chair dimensions, routine meal, reach limits, existing utilities, and problem locations.
2. Schematic walkthrough: Review the proposed layout, turning areas, work surfaces, cabinet openings, and appliance approaches in 3D.
3. Finish-selection appointment: Choose flooring, counters, pulls, lighting finishes, and appliance models without changing the access grid.
4. Pre-construction confirmation: Recheck field dimensions, rough-in locations, door swings, outlet heights, and the installation sequence.

Budget conversations need the same discipline. The provided project brief doesn't supply verified dollar ranges for cabinets, countertops, appliances, plumbing, flooring, lighting, or labor, so a responsible contractor should price those items from the approved scope rather than present invented “typical” totals. Ask for separate allowances and labor lines, then identify which changes are structural and which can be deferred.

Phasing can help a household manage disruption and spending. Complete electrical and plumbing rough-ins first, then install cabinets and counters, followed by flooring, lighting trim, hardware, and final adjustments. If the work is divided across budget cycles, plan a temporary sink and cook zone before demolition so the household isn't left without a safe way to prepare food.

Confirm permits and the final installation

Ask the local building department which work requires a permit. Moving plumbing, adding circuits, changing walls, modifying gas service, or altering structural elements commonly warrants review, but the authority having jurisdiction makes the final determination. ADA standards govern covered U.S. facilities and certain built environments, while residential work may also be governed by local building, electrical, plumbing, and accessibility codes.

The International Code Council has announced that A117.1-2026 is scheduled for release in fall 2026, with major revisions concerning electrical controls and outlets over counters in common-use kitchens and accessible dwelling units, as described in the International Code Council announcement. Treat that as a future code-development update, not as a current requirement, and confirm which edition your jurisdiction has adopted.

Before final payment, walk the kitchen from the seated user's position:

• Verify clearances: Measure the installed aisles, doorways, approaches, and turning areas.
• Test appliances: Operate every control, door, drawer, and landing surface from the actual chair.
• Check hardware: Confirm pulls open smoothly without excessive force or awkward wrist rotation.
• Inspect protection: Verify insulated surfaces, covered plumbing, eased edges, and anti-scald provisions.
• Confirm future support: Check that any planned grab-bar blocking or reinforcement is installed before drywall closes.
• Document corrections: Complete a contractor walk-through and resolve access issues before signing off.
