Zero Entry Shower Installation: A Homeowner’s Planning Guide

You're standing in a bathroom with a tape measure in one hand and a sales estimate in the other, trying to decide whether a curbless shower is a smart upgrade or a structural headache. The appeal is obvious, a clean floor, easier access, a more modern look. The catch is that zero entry shower installation is rarely just a tile decision, because the floor, drain, and waterproofing have to cooperate from the start.

Why a Zero Entry Shower Is a Different Animal

A standard shower swap can often live inside the bones that are already there. A zero-entry shower usually can't. The floor has to be recessed or the surrounding area has to be built up so the transition ends up flush, and the shower still has to drain correctly without relying on a curb to contain water. That's why this project behaves more like a structural bathroom remodel than a fixture replacement, especially in older Northern Colorado homes where joist depth, subfloor height, and existing plumbing don't always line up neatly.

That's also why the pricing looks different. Professionally installed walk-in shower projects in the U.S. commonly range from $4,000 to $20,000, with many homeowners spending about $12,000, while custom-built versions often land at $14,000 to $20,000+. Choosing a curbless design can add another 20% to 30% because of the subfloor and drainage work required, and labor can represent 40% to 65% of the total budget. This cost breakdown from This Old House is a good reality check before anyone starts picking tile.

The market has moved beyond niche accessibility projects, too. One industry planning guide notes that nearly 24% of new bathroom remodels now include a curbless or zero-threshold shower, and among aging-in-place remodelers, over 80% had installed curbless showers for clients as early as 2018. That planning article from Ideal House shows how quickly barrier-free design has become mainstream.

For homeowners in Fort Collins, Loveland, or Windsor, the main mistake is treating the shower like a finish choice when it's really a chain of decisions. The five that matter most are subfloor depth, drain placement, framing adjustments, waterproofing system, and threshold detailing. Get those right, and the rest of the project becomes manageable. Get them wrong, and even beautiful tile won't save the build.

If accessibility is part of your plan, this broader guide to accessible bathroom design ideas is worth a look before you lock anything in.

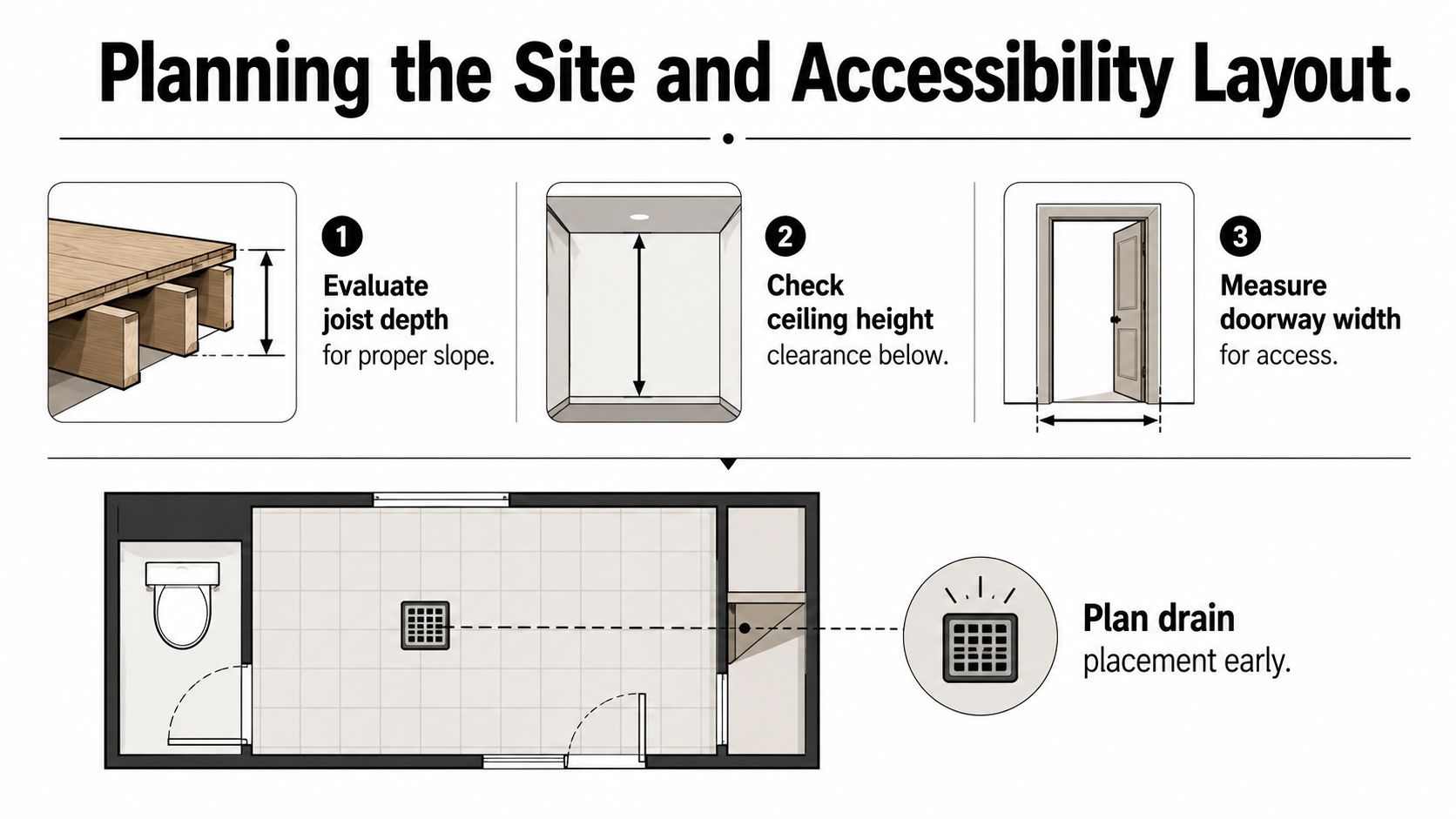

Planning the Site and Accessibility Layout

The first question is not what tile you want. It's whether the room can physically support a curbless layout without awkward compromises. Start with the joists, the floor assembly above, and what sits below the bathroom. If the drain can't land where the slope needs it, you're already into structural decisions, not cosmetic ones.

The measurements that decide feasibility

A practical benchmark for accessibility is at least 36 inches at the entry, which aligns with ADA-oriented guidance. That number matters because the opening has to work for the person using it, but also for the glass, trim, and daily traffic patterns around the room. In a tight hall bath, one inch can decide whether the shower feels open or cramped.

Waterproofing layout matters just as much. Guidance for open-plan layouts often calls for protecting floors at least 1 meter beyond the shower area and taking walls to 2,200 mm high. That doesn't mean every bathroom needs those exact numbers, but it does mean the splash zone has to be planned, not guessed at. Aging-in-place projects usually push fixtures, grab bar blocking, and storage into positions that support safer movement, not just symmetry.

Practical rule: if the drain location is an afterthought, the rest of the design starts losing flexibility fast.

Linear drain or point drain

Consideration	Linear Drain	Point Drain
Slope behavior	Easier to create a single-direction slope	Requires slope from multiple directions
Visual line	Cleaner at the entry or wall edge	More centralized, less discreet
Retrofit fit	Often easier when floor depth is limited	Can be harder in shallow assemblies
Layout impact	Helps simplify tile transitions	Can demand more tile cuts

The difference is simple. A linear drain often gives the designer more freedom at the threshold and can simplify slope work. A point drain can still work well, but it usually asks more of the tile layout and the floor build. This bathroom remodeling planning guide is useful if you're trying to coordinate the shower with the rest of the room rather than treating it as a standalone box.

Framing, Subfloor Recess, and Slope Prep

The moment the saw comes out, the project stops being theoretical. The drain location needs to be locked before the framing closes up, because everything else, the recess depth, the blocking, the waterproofing transition, depends on that choice. In a retrofit, the shower floor usually gets recessed, or the surrounding area gets raised, so the finished plane can sit flush without trapping water at the entry.

What gets done before the walls close

A good crew starts by confirming joist layout, then deciding where the drain can live without forcing a bad slope. The subfloor gets cut or recessed, perimeter blocking goes in, and the floor is shaped so the shower still pitches to the drain even though the entry is flat. That point gets missed constantly by homeowners who assume “curbless” means level. It doesn't. It means the threshold is flush, while the shower pan itself still has a controlled slope.

The shower can be barrier-free without being flat.

That distinction is why retrofit work can get tricky in an existing bathroom. You're not just swapping a box; you're negotiating with the floor structure. A helpful outside reference if you want to see a methodical sequence is Trademaster Construction's curbless shower installation guide, which reflects the same basic discipline: drain first, structure second, finish last.

Linear drain versus point drain in real retrofits

A linear drain often wins when the subfloor depth is limited or when you want a cleaner entry with fewer slope transitions. A point drain can be a solid choice when the framing gives you enough room to build a four-way slope without making the tile layout awkward. The wrong choice isn't about style, it's about whether the floor system can support the geometry without forcing weak spots.

The biggest structural mistakes are predictable. Drains get set too late. The slope gets compromised to save time. The subfloor gets patched without enough attention to rigidity. Those are the jobs that look fine for a month and then start telegraphing trouble.

For homeowners comparing scopes, this tile shower cost guide helps frame why the framing stage carries so much of the overall price.

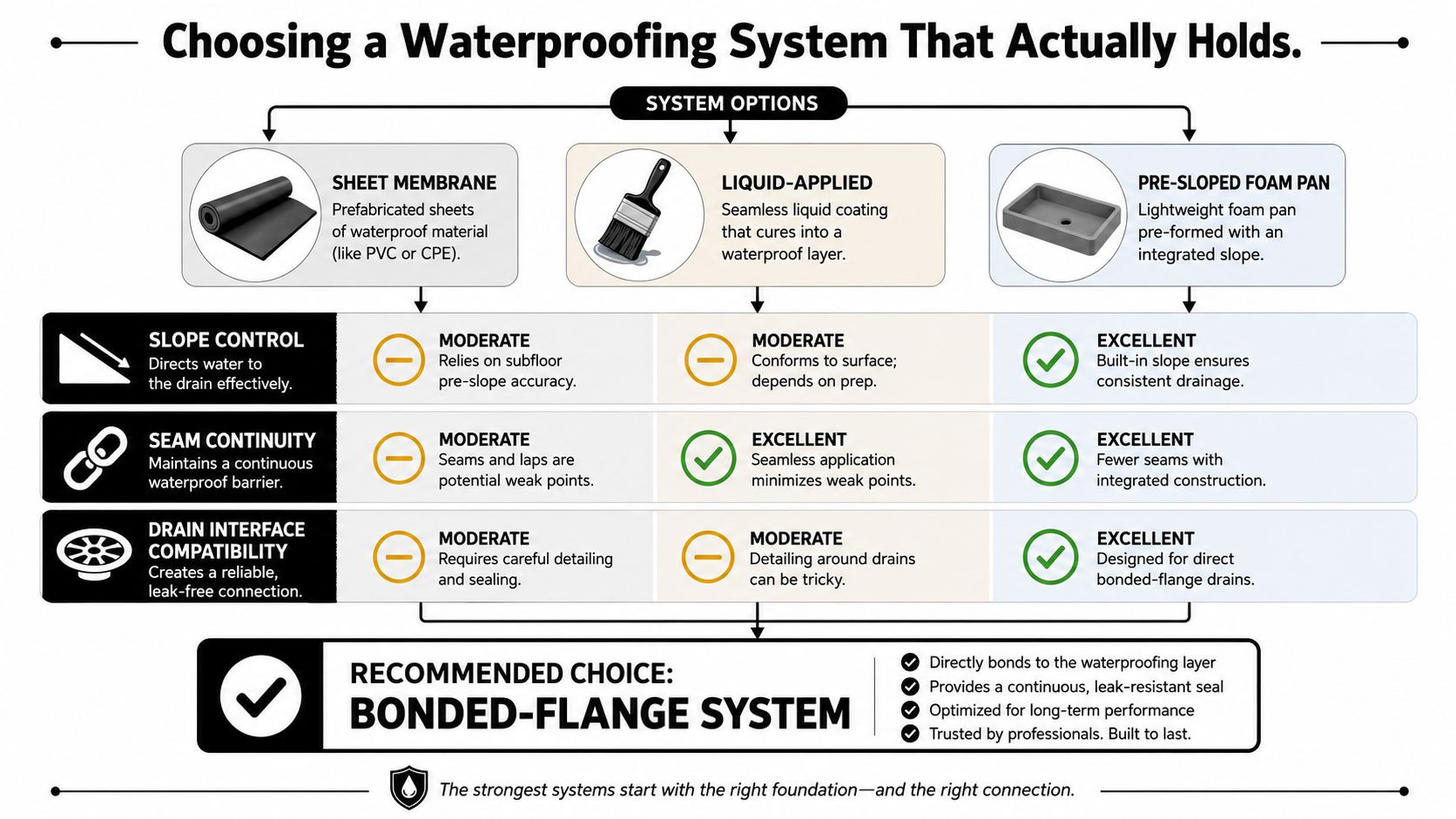

Choosing a Waterproofing System That Actually Holds

Waterproofing is where a curbless shower succeeds or fails. The finish tile gets all the attention, but the work is the membrane, the drain interface, and the way the substrate was prepared before anything got covered up. The strongest systems are the ones that control slope well, keep seams continuous, and tie cleanly into the drain without improvisation.

What the system has to do

A sheet membrane gives you predictable coverage when it's installed correctly, especially across corners and changes of plane. A liquid-applied membrane can work well too, but it depends heavily on consistent thickness and careful attention at penetrations. A pre-sloped foam pan helps control geometry because the slope is built in, which can reduce error on the floor.

The drain interface is the weak link in many shower failures, which is why many pros favor a bonded-flange drain. It gives the membrane a direct connection to the drain assembly instead of relying on more complicated transitions. If you're trying to understand why shower drains leak or how they get fixed, Bulls Eye Repair's shower drain repair guide is a useful companion read.

What good installation looks like

The membrane has to be embedded correctly. That means thin-set burned into the substrate, directional troweling, and full contact so there aren't voids under the waterproofing. Guides for this kind of work also stress overlap at seams and transitions, with one installation example using 2-inch overlaps and extending membrane beyond the shower boundary to manage splash migration. If any of that is skipped, the assembly can fail even if the product itself is excellent.

A widely used quality check is the 24-hour flood test. The pan gets filled nearly to the curb line, marked, and observed for any measurable drop before tile goes in. That test doesn't guarantee perfection forever, but it does catch the sort of leak that's easy to fix before the room is finished and expensive to fix after.

Tile, Plumbing Trim, and Threshold Detailing

Once the membrane has cured and passed inspection, the project finally starts looking like a shower instead of a construction zone. Now the details become visible, and sloppy planning shows up in the finished room every single day. The tile, the valve trim, the showerhead position, and the drain cover all have to work together so water stays in the shower zone instead of wandering toward the bathroom floor.

The finish choices that matter most

Smaller-format tile usually behaves better on a curbless floor because it follows slope more naturally. Larger tiles can fight the pitch, which creates awkward cuts and can leave the floor looking forced. That doesn't mean big tile is impossible, it just means it's less forgiving when the floor isn't perfectly planned.

Change-of-plane joints matter too. Every transition from floor to wall, wall to wall, and floor to threshold needs the right sealant treatment, because grout alone isn't the flexible part of the assembly. The drain cover also needs to sit cleanly, especially with a linear drain where the eye goes straight to the entry line.

Good finish work hides the complexity beneath it, it doesn't try to replace it.

Trim-out order and accessories

Plumbing trim usually comes after tile setting and final cure, then the showerhead, hand spray, niche shelving, and drain cover go on in sequence. If a shower chair is part of the routine, it's better to plan for that early rather than trying to wedge one in after the walls are finished. Top Mobility's guide on where to buy a shower chair is practical for anyone building around mobility needs.

The final walkthrough should be picky. Check that grout joints are even, sealant joints are continuous, the threshold doesn't allow splash-out, and the drain cover sits flush. If water is leaving the shower during use, the room is not done, even if the tile looks great. That's especially true in homes where the bathroom also leads to a bedroom, because threshold detailing has to stop migration before it starts.

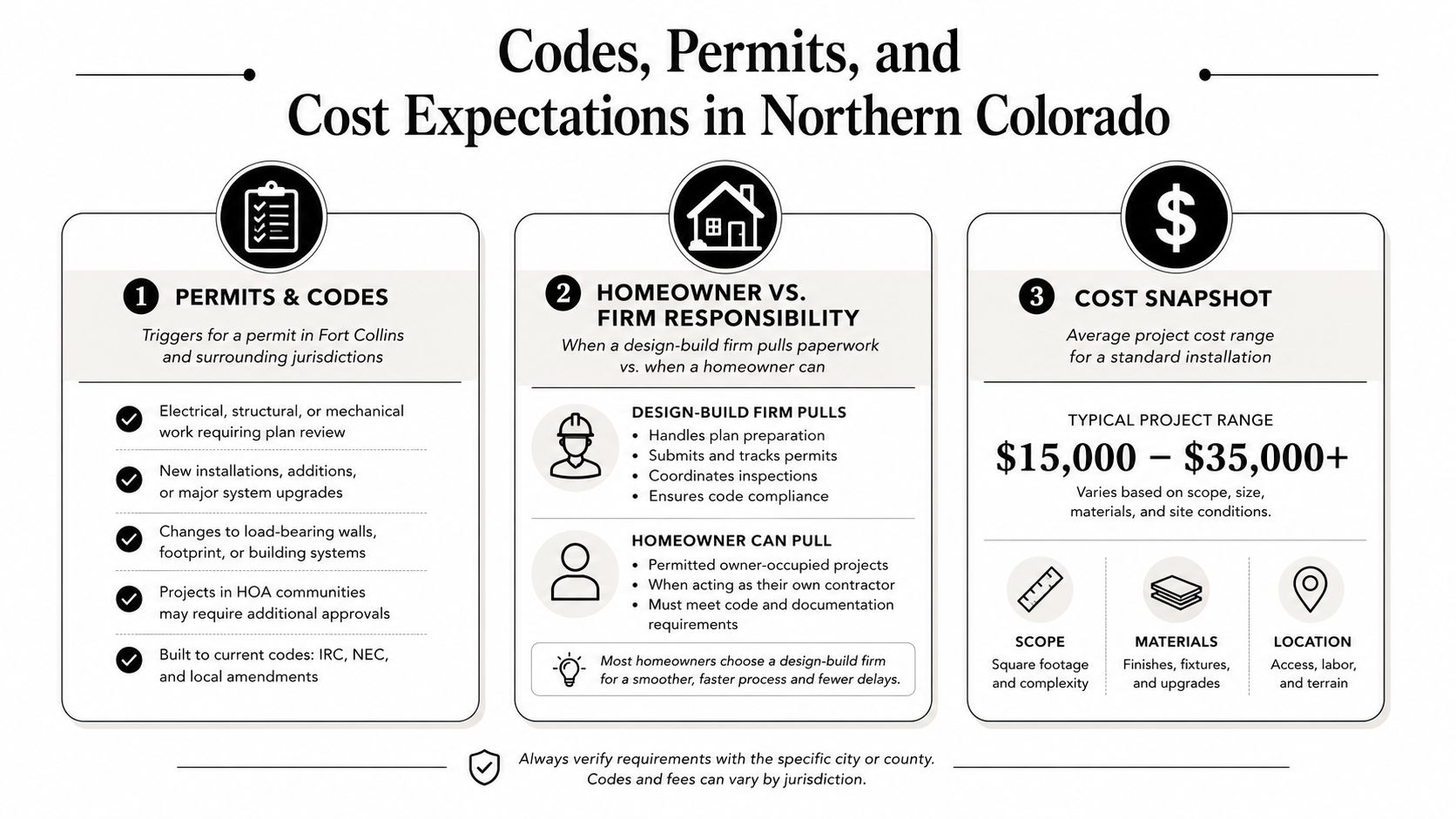

Codes, Permits, and Cost Expectations in Northern Colorado

Permit questions in Fort Collins and nearby jurisdictions usually come down to scope. If the project changes plumbing, alters structure, or affects accessibility geometry, it's no longer a simple surface update. A design-build firm can usually pull the right paperwork and coordinate the inspection path because the shower plan, the framing changes, and the plumbing moves are all tied together. A homeowner can sometimes handle a simpler project, but once the floor recess and drain coordination get involved, the margin for guessing gets thin.

Budget reality before you start shopping tile

The best cost anchor is this. A professionally installed walk-in shower commonly runs $4,000 to $20,000, with a typical homeowner spending about $12,000, and custom-built versions often reaching $14,000 to $20,000+. A curbless design can add 20% to 30% because of the subfloor and drainage work, labor can be 40% to 65% of the total budget, and plumbing changes may add $3,000 to $8,000 for a full tub-to-shower conversion. Those figures come from This Old House's walk-in shower cost breakdown, and they matter because the hidden work sits below the surface.

The mistake many homeowners make is budgeting from tile up. In a zero-entry shower, the subfloor and drain details are doing as much financial work as the finish materials. That's why two bathrooms with the same tile can land at very different prices.

What Northern Colorado homeowners should expect

Scope item	What it usually means
Permits and inspection	Needed when plumbing, structure, or accessibility geometry changes
Design coordination	Drain location, floor recess, and waterproofing plan must work together
Cost control	Labor and plumbing can outweigh finish upgrades
Build strategy	Better handled as one coordinated remodel than piecemeal fixes

A practical rule is simple. If the room needs framing changes, plumbing relocation, and a real waterproofing plan, it belongs in a design-build scope, not a handyman patch job. For homeowners gathering budget context, this bathroom remodeling cost guide can help frame the conversation before design starts.

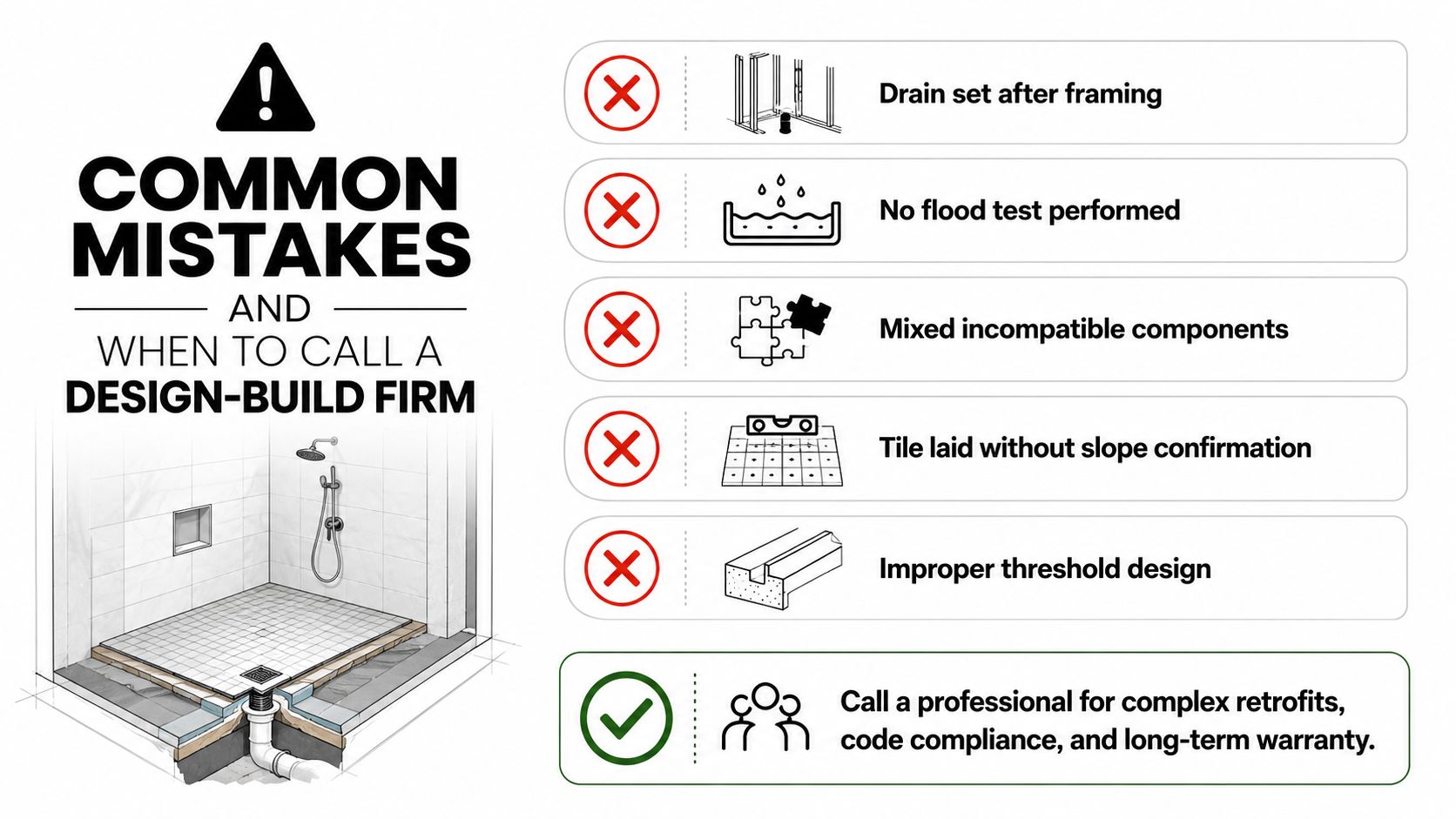

Common Mistakes and When to Call a Design-Build Firm

The failures on curbless projects usually aren't mysterious. The drain gets set after framing is already locked. No flood test gets performed. Different waterproofing parts get mixed together because they were on hand. Tile gets laid before slope is confirmed. The threshold looks flush but still throws water into the wrong part of the room.

Why these mistakes show up so often

Curbless showers tempt people into thinking the visible part is the whole job. It isn't. If the floor slope is wrong by the time tile starts, the best finish tile in the world won't fix ponding or splash-out. If the membrane and drain don't belong to the same system, the weakest connection becomes the failure point.

A general handyman can sometimes replace fixtures and handle light finish work. Accessibility-heavy showers are different because the work touches structure, plumbing, waterproofing, and finish detailing all at once. That's where a design-build team earns its keep, especially when the room has to stay functional for aging-in-place use.

When the professional path makes sense

A design-build firm is the better fit when the project needs:

• Layout discipline, because the drain, floor recess, and doorway clearance all affect one another.
• Code coordination, because permits and inspections often follow the structural and plumbing changes.
• Budget visibility, because labor and plumbing can shift the total fast.
• A complete handoff, because the shower needs to perform on day one and keep performing years later.

For homeowners in Northern Colorado, the other advantage is process. SouthRay Kitchen & Bath works with three packages, Practical, Polished, and Luxury, and the first consultation includes a free personalized 3D pre-visualization so layout and finish decisions can be tested before construction begins. A dedicated project coordinator also provides weekly budget updates, which helps keep the project from drifting once the floor opens up.

If you're ready to turn a cramped or hard-to-use bath into a safer one, connect with SouthRay Kitchen & Bath. Their team can help you sort the structural decisions, the accessibility details, and the budget before the first tile gets ordered.
