15 Amp GFCI Guide for Kitchen and Bathroom Safety

You're standing in a kitchen with a damp countertop, or maybe in a bathroom where the floor still has a little water near the vanity. That's the moment to start wondering whether the outlet there is safe, whether the breaker matters more than the receptacle, and why a 15 amp GFCI keeps coming up in remodel advice. The short answer is that this device is built to protect people from shock in rooms where water and electricity can meet fast.

Why 15 Amp GFCI Matters

A kitchen sink splash or a wet bathroom floor can turn an ordinary outlet into a real hazard. Standard receptacles don't watch for that kind of risk, but a 15 amp GFCI does, and that's why it shows up so often in renovation plans for baths, kitchens, garages, and outdoor areas.

SouthRay Kitchen & Bath handles remodel work where those choices come up every day, especially when homeowners are updating older rooms and want the new finishes to match current safety expectations. A lot of people think the outlet label is the main issue. In reality, the bigger question is whether the circuit has the right personnel protection for the room.

A useful way to think about it is this. An outlet can look ordinary and still be doing something very specific behind the scenes, which is protecting you from a dangerous path to ground. If you want a deeper primer on the broader concept, understanding ground fault protection is a helpful reference before you start comparing device types.

Practical rule: In wet or damp rooms, the outlet type matters less than whether the circuit has the right shock protection for that location.

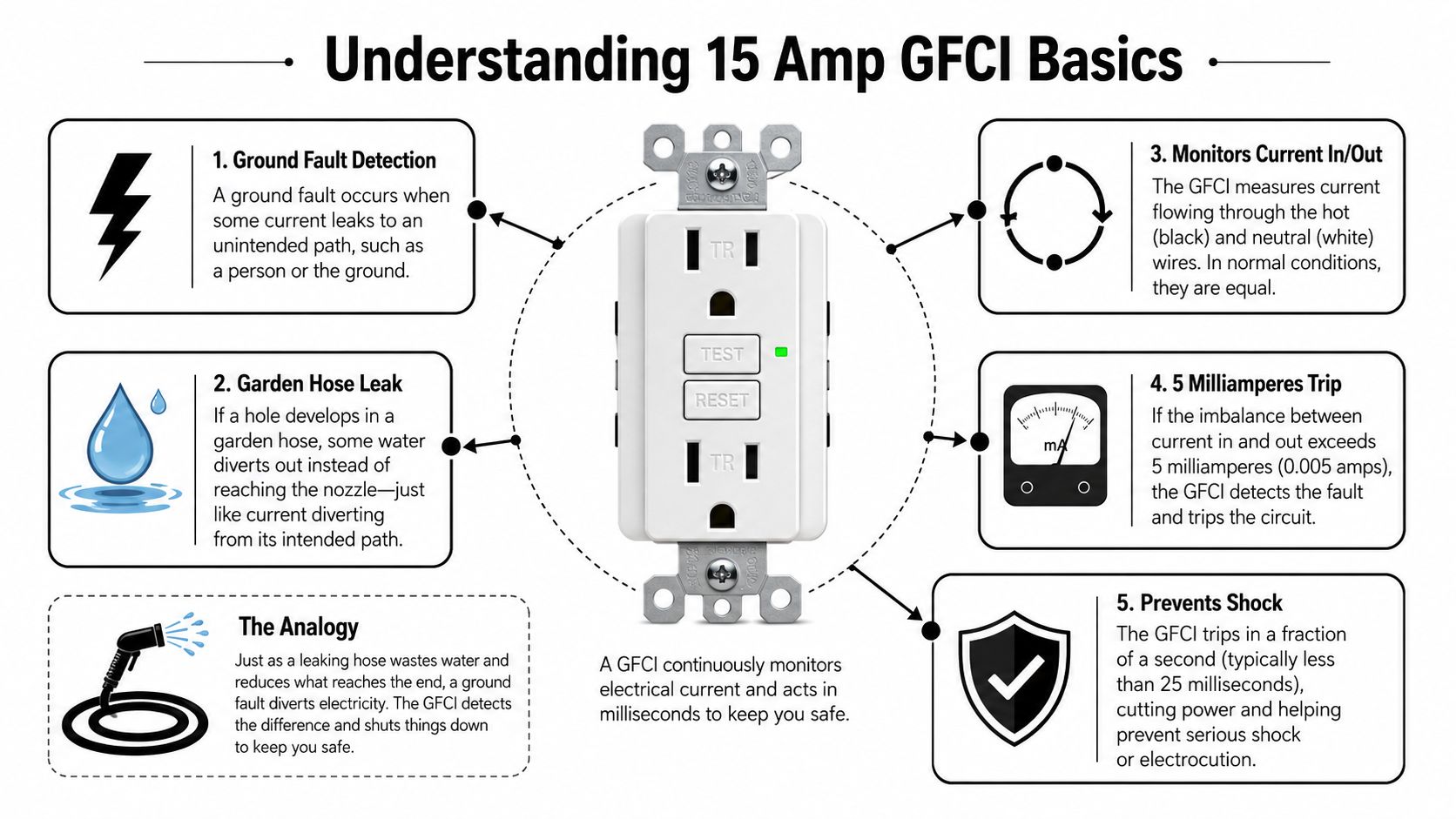

Understanding 15 Amp GFCI Basics

Think of a 15 amp GFCI like a garden hose with a built-in leak detector. If water leaves the hose through a tiny pinhole instead of flowing where it should, you know something's wrong. Electricity works the same way. When current starts taking an unintended path, the GFCI senses the imbalance and shuts things down.

The key number is the trip threshold. A Class A GFCI is designed to trip when ground-fault current reaches about 6 milliamperes (0.006 amperes), and that threshold is about protecting people from severe electric shock, not protecting wiring from overloads. That distinction matters because a lot of homeowners assume the receptacle rating and the safety function are the same thing. They're not.

What the 15 amp label really means

The 15 amp part is the device's electrical rating, not the point at which it must trip during a shock event. In common residential use, a 15 amp GFCI is typically a 15 A, 120 VAC device, which fits standard North American branch circuits used in kitchens, baths, and utility areas. Thomasnet's product literature shows that kind of rating clearly in residential GFCI products, including plug and in-line models rated 15 Amps at 120 VAC (Thomasnet product literature).

That's why beginners often get tripped up. The faceplate rating is about the device's electrical handling capacity, while the GFCI function is about sensing a dangerous leak in current. One protects the person, the other coordinates with the circuit's breaker to protect the wiring.

The NEC history also explains why this device became so common. Eaton's code summary shows how GFCI protection moved from a narrower requirement to broader protection in more dwelling locations, and by the 2020 NEC, the old amp-value distinction was removed in many listed areas in favor of location-based protection (Eaton NEC history summary).

A simple way to separate the jobs

• GFCI function: watches for current leaking to an unintended path.
• Breaker function: watches for too much current on the circuit.
• 15 amp label: tells you the device's rating, not the shock threshold.
• 6 mA trip point: is about protecting people, not saving the wire insulation.

Once you separate those jobs in your mind, a lot of the confusion around kitchen and bath upgrades starts to fade.

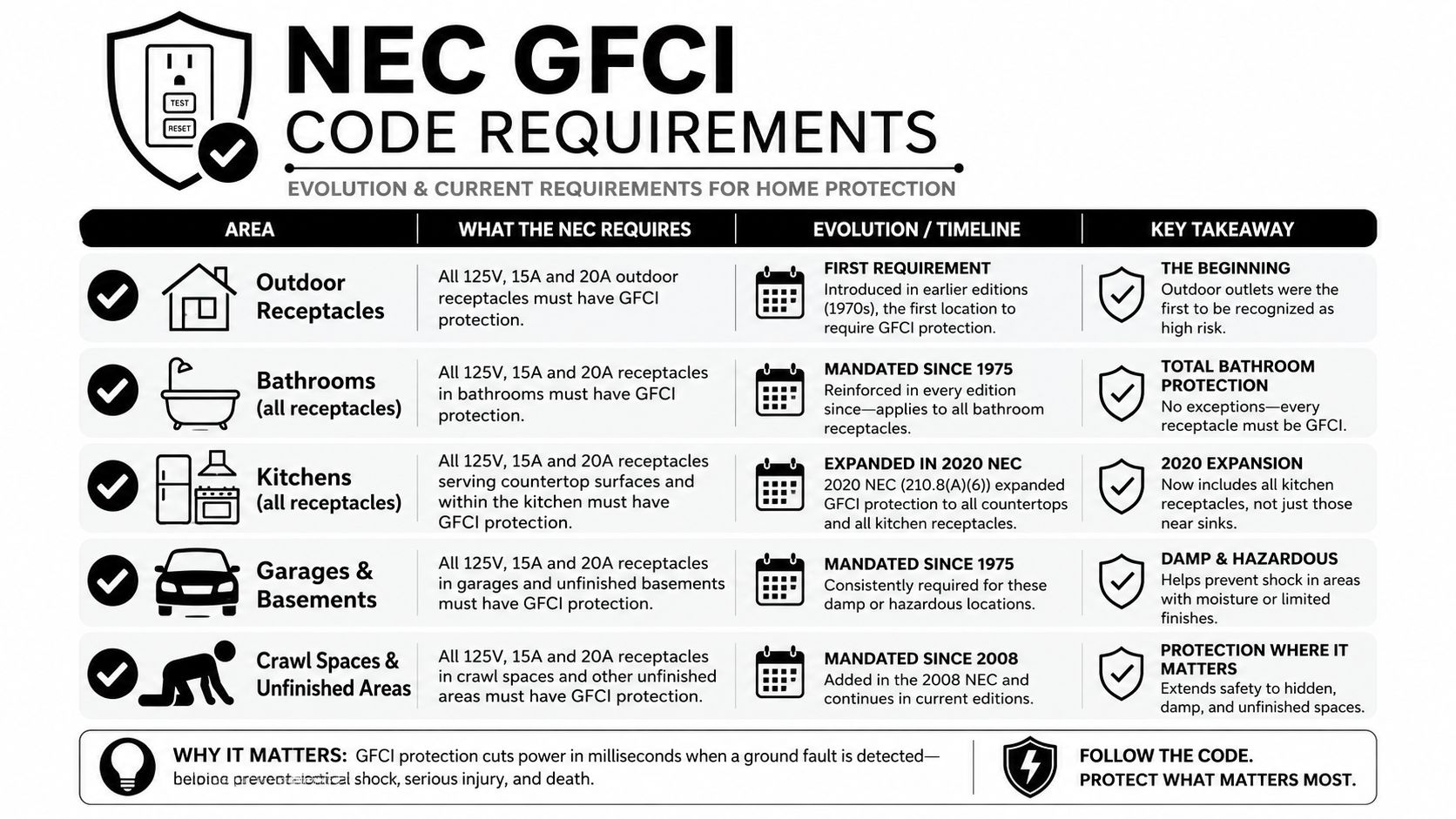

Code Requirements for Kitchen and Bath

Electrical code didn't arrive at today's rules all at once. The protection started in specific locations, then expanded as the NEC kept pushing more rooms into the safety net. Eaton's code history summary shows that earlier dwelling-unit rules focused on 125-volt, single-phase, 15- and 20-ampere receptacles in specified locations, and the 2020 NEC expanded that further to 125-volt through 250-volt receptacles in listed areas (Eaton NEC history summary).

That shift matters in kitchen and bath remodels because those rooms are full of hard surfaces, plumbing, and frequent hand-to-surface contact. In plain English, they're exactly the kind of places where a ground fault can become a shock hazard quickly. The rule is no longer about a narrow group of receptacles. It's about where the receptacle is installed.

For remodel planning, that means you can't look at the outlet face alone and call it compliant. You have to look at the room, the circuit design, and the receptacle location. That's why a kitchen countertop outlet, a bathroom vanity outlet, or a garage receptacle can all fall under GFCI requirements even if the device itself is a familiar 15 amp style.

A permit check matters here too. If your project includes a broader remodel package, the electrical scope often gets reviewed alongside framing, plumbing, and finish work. SouthRay's building permit cost guide is useful when you're budgeting the administrative side of a renovation, because code-compliant electrical work often travels with the permit process.

Where homeowners usually get confused

• Kitchen countertops: people assume only one outlet needs protection, but many countertop receptacles now fall under broader GFCI rules.
• Bathroom sinks: the presence of water makes the protection expectation obvious, but the exact receptacle arrangement still matters.
• Garage and outdoor areas: these are often treated as simple utility spaces, yet they're high-risk locations for shock.
• Older homes: a house can have modern finishes while still carrying older outlet logic that no longer fits today's code expectations.

The easiest way to stay on track is to treat location as the first decision, not the outlet's printed rating.

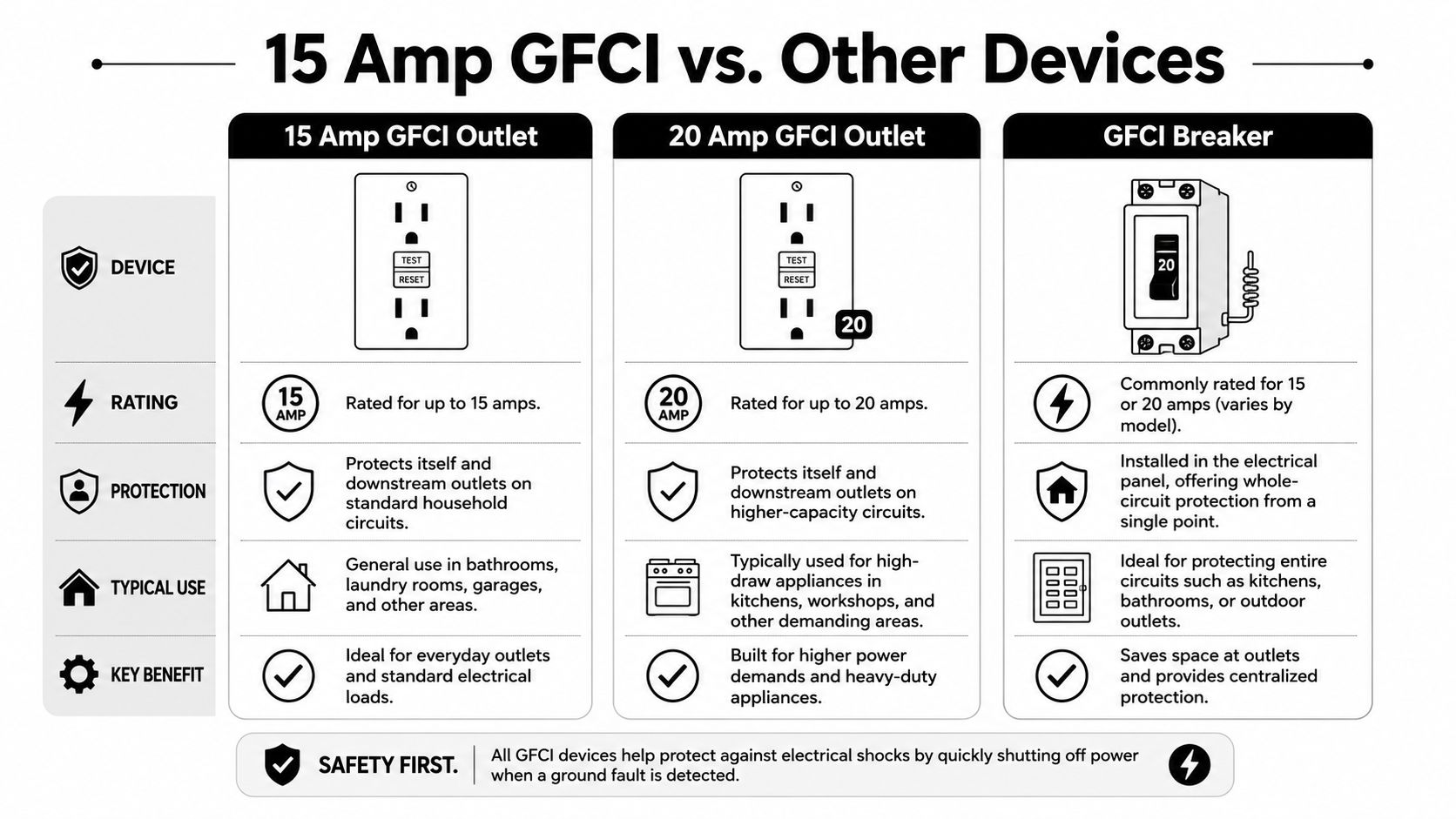

Comparing 15 Amp GFCI with Other GFCI Devices

A lot of homeowners look at a 15 amp GFCI, a 20 amp GFCI, and a GFCI breaker and assume one of them must be the “correct” one for every kitchen or bath project. That's not how the choice works. The right device depends on the circuit layout, what's on that circuit, and whether you want protection at the outlet or at the panel.

The most important idea is that the 15 amp label does not mean the device trips at 15 amps. A 15 amp GFCI can be used on a 20 amp circuit because the breaker handles overcurrent protection, while the GFCI still trips on a ground fault at around 6 mA. That's why the outlet rating and the shock-protection function are separate questions (HomeImprovement discussion).

Outlet style versus breaker style

A receptacle-style GFCI protects from the outlet outward, and it can also protect downstream outlets if the load wiring is used correctly. A breaker-style GFCI protects the whole circuit from the panel, which can be cleaner in some remodels, especially when several receptacles need the same protection.

A good choice is the one that matches the circuit design, not the one with the highest number on the face.

Here's the practical difference. Outlet-style protection is often easier when you're replacing a single device or updating one bathroom vanity location. Breaker-style protection can make more sense when multiple outlets on the same branch circuit all need the same safety coverage and the panel has room for the device.

SouthRay Kitchen & Bath can integrate either approach during a remodel, depending on the room layout and the electrical plan. The decision usually comes down to access, downstream coverage, and how the finished space is going to be used.

A quick decision check

• Use a 15 amp GFCI outlet when the circuit design calls for a standard residential receptacle and the branch breaker already handles overcurrent protection.
• Use a 20 amp GFCI outlet when the circuit and receptacle arrangement call for the higher-rated device.
• Use a GFCI breaker when whole-circuit protection at the panel is the cleaner fit.

If you're unsure, the safest move is to match the device to the circuit plan, not to guess based on appliance size.

Best Practices for Installation and Wiring

A proper install starts with turning off power, but the part that causes the most mistakes is wiring the device correctly. If the LINE and LOAD terminals get swapped, the receptacle may not work the way the homeowner expects, and downstream outlets may lose protection or power entirely. That's why this isn't just a “swap the faceplate” job.

The simplest workflow is to identify the incoming feed first. Then separate the outgoing conductors if the device is meant to protect more than one outlet. If you're looking at a typical 15 amp GFCI in a kitchen or bath, the device is usually rated 15 A at 120 VAC, which is the standard residential setup for these rooms (Thomasnet product literature).

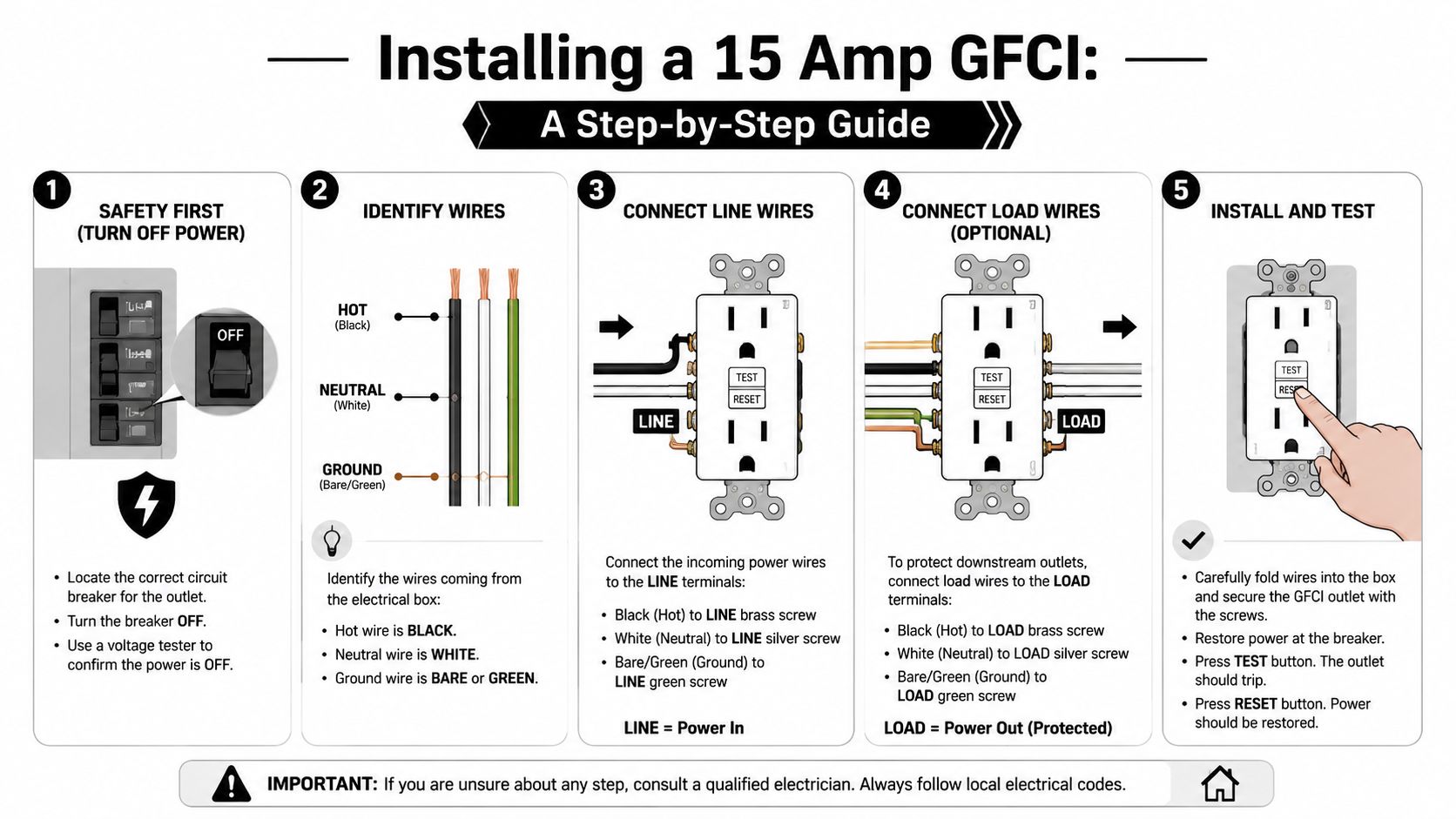

Wiring order that reduces mistakes

1. Turn off the breaker first. Don't trust the switch position alone. Verify the circuit is dead before touching any conductor.
2. Identify hot, neutral, and ground. Hot is the energized conductor, neutral returns current, and ground is the safety path.
3. Land the incoming power on LINE. That's the feed coming from the panel.
4. Use LOAD only if downstream protection is needed. If you don't need downstream receptacles protected, leave LOAD unused.
5. Test with the device buttons. After power is restored, use TEST and RESET before closing up the work.

The YouTube walkthrough is helpful if you want to see the sequence in motion while you're planning the work order.

Common installation mistakes

• Reversing LINE and LOAD: the outlet may appear dead or behave unpredictably.
• Skipping the test step: you won't know whether the GFCI trips properly.
• Assuming all white wires are neutral in every older remodel: older homes can hide surprises, so verify each conductor before connecting anything.
• Forcing a tight box back into place: cramped wiring can damage terminations and make future service harder.

If a remodel has multiple circuits open at once, label everything before touching the device. That one habit saves a lot of troubleshooting time later.

Common GFCI Issues and Troubleshooting

Not every tripping outlet means the GFCI is “bad.” In remodel work, the problem is often a wiring mix-up, a shared neutral, moisture in the box, or a downstream load that was tied into the wrong terminals. The device is doing its job by reacting to something unusual. The trick is figuring out what that something is.

A common source of confusion is the mismatch between receptacle size and circuit design, especially around dedicated appliances. Many remodelers run into uncertainty about when a 15 amp GFCI is appropriate versus when a 20 amp receptacle belongs in the spot, especially during kitchen and bath updates (DIY Stack Exchange discussion). That uncertainty can lead to device swaps that don't solve the actual problem.

Symptom, cause, fix

• Keeps tripping after rain or cleaning: moisture may be getting into the box or the outdoor cover.
• Trips when a specific appliance starts: the appliance may have a leakage issue that the GFCI is detecting.
• Won't reset at all: the LINE and LOAD terminals may be miswired, or the circuit may still have power issues upstream.
• Only one outlet works after replacement: downstream wiring may have been placed on the wrong terminals.

If a GFCI trips repeatedly, assume it's warning you about a real fault before you assume the device itself is defective.

For remodelers, the smartest approach is to isolate the circuit and test each branch one at a time. That's especially true in kitchens and baths, where hidden junctions and older splices can complicate the picture. If you're doing a final review before the walls are closed, SouthRay's final walkthrough checklist can help you catch issues while they're still easy to fix.

When to stop troubleshooting

• Visible scorch marks around the receptacle.
• Repeated tripping with no obvious plug-in load.
• Loose or damaged conductors inside the box.
• Old wiring that doesn't match the current device arrangement.

At that point, the problem isn't a quick reset. It's time to bring in a licensed electrician.

Working with Electricians on Remodel Projects

A good electrician does more than install a receptacle. They look at the whole room, the circuit path, the panel space, and the code requirements that apply to the finished layout. That matters in kitchen and bath remodels because the electrical plan has to fit the design, not fight it.

If you want a straightforward guide on hiring help, Hand Vetted advice on electricians is a practical resource to compare credentials and expectations before the work starts. During a remodel, that kind of vetting keeps the project moving in the right order, from permit work to final inspection.

SouthRay Kitchen & Bath also uses a dedicated project coordinator to keep the schedule visible and the budget conversations organized, which helps when electrical changes affect other parts of the renovation. You can learn more about that role through the company's project coordinator overview.

A strong remodel walkthrough usually covers three things. First, where the GFCI protection belongs. Second, which outlets should be protected downstream. Third, how the finished room will be used so the electrical work supports the layout instead of limiting it.

If you're planning a kitchen or bath upgrade in Northern Colorado, ask for the electrical plan early, not after tile and cabinets are already ordered. That makes it easier to align the 15 amp GFCI choices with the room design, the inspection path, and the finished look.

---
